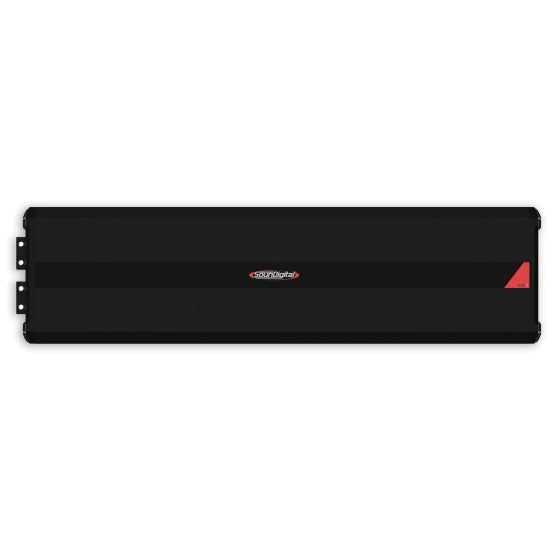

SounDigital 20000.1 EVOX 1Ω
- Regular price
- $3,299.00
- Regular price
-
- Sale price
- $3,299.00
- Unit price
- per
Vendor : SounDigital
Couldn't load pickup availability
The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology,
SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.
The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability.
TECHNICAL SPECIFICATIONS
20000.1 EVOX – 1Ω
Power @ 12.6V @ 4Ω: 1 X 8712 WRMS
Power @ 12.6V @ 2Ω: 1 X 13200 WRMS
Power @ 12.6V @ 1Ω: 1 X 20000 WRMS
Power @ 14.4V @ 4Ω: 1 X 9714 WRMS
Power @ 14.4V @ 2Ω: 1 X 14718 WRMS
Power @ 14.4V @ 1Ω: 1 X 22300 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 980 A
Current Draw (Max): 1960 A
Recommended Fuse (Music): 1000 A
Total Efficiency: 81%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500Hz
SNR: 76dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.2%
Product Dimensions: 33.9 x 8.8 x 2.8 in
Product Dimensions: 86.3 x 22.5 x 7.1 cm
