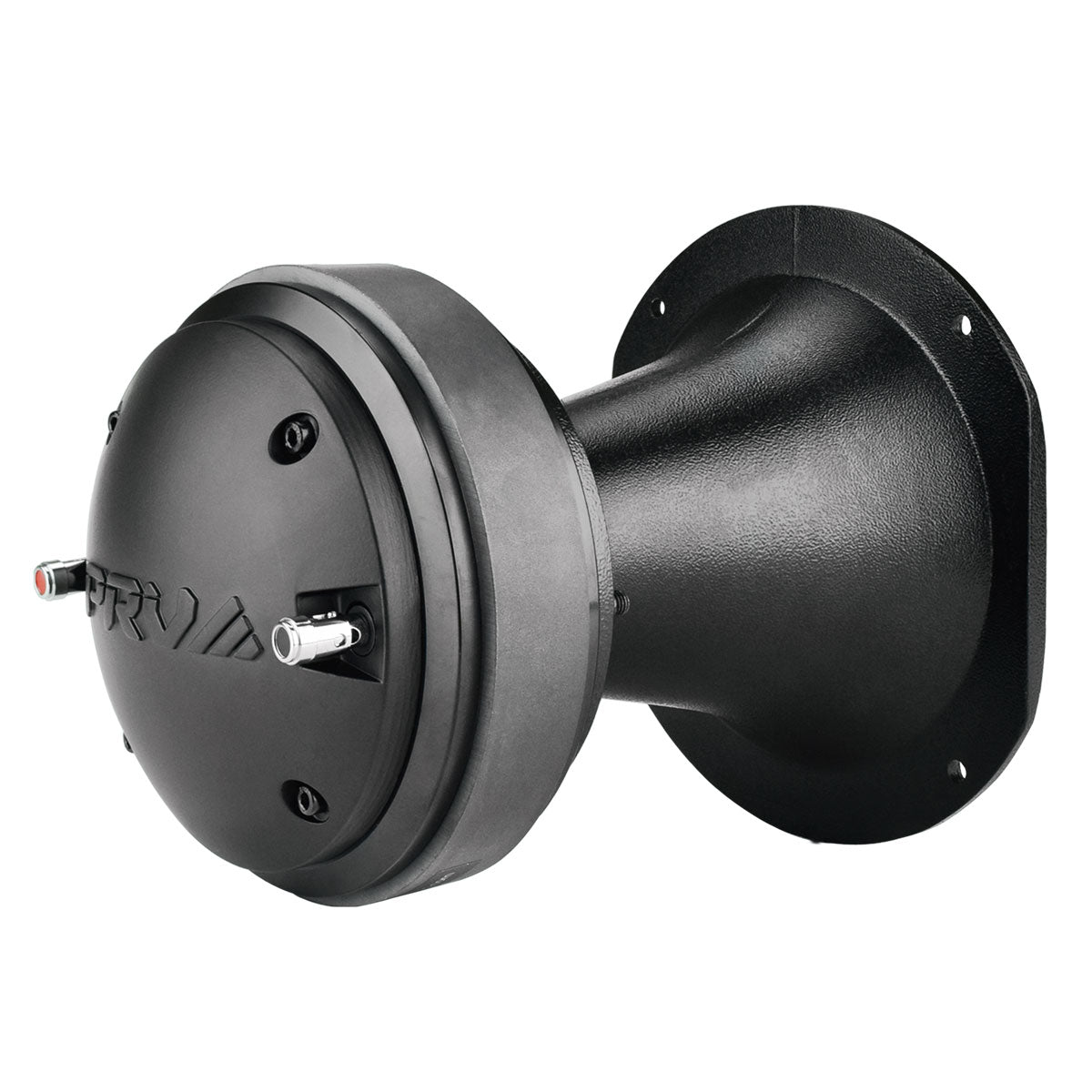

PRV Audio WG2500Ti (Single Unit)

No review yet. Write Review
Regular price
$99.91
Regular price
Sale price
$99.91

Vendor : PRV Audio

Hurry! Only
0
units left in stock!
SATISFACTION
Guaranteed with effortless returns
DELIVERY
We ship to the contiguous 48 United States
PAYMENTS
Your security is our priority
WE ACCEPT
PayPal, Venmo & all major Credit Cards

The WG2500Ti is a unique combo featuring a Titanium Pro Audio compression driver with a 2" exit waveguide that features a special 2.5" size voice coil allowing accurate reproduction through 17kHz. The pure titanium diaphragm supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.

Highlights

  • Throat Diameter: 2″
  • Type: Combo
  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 100 Watts
  • Program Power: 200 Watts

High output mobile audio enthusiasts choose the PRV Audio WG2500Ti for extreme SPL car audio competitions where the small diameter of the driver allows front mounting, making it easy to install, without detaching the driver from the horn.

GENERAL SPECIFICATIONS

Exit Throat Diameter 2" (50 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 100 Watts
Program Power 200 Watts
Sensitivity 2.83V at 1m 107 dB
Recommended Hi Pass Crossover** **For Full Power Handling 1700 Hz** **12db Per Octave Crossover
Frequency Response at -10dB 1,200 – 17,000 Hz
Voice Coil Diameter 2.5″ (65 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Titanium
Flux Density 21.1 T
Magnet Material Ferrite


EXTRA INFO

Overall Depth 8.07" (205 mm)
Mounting Depth 7.71" (196 mm)
Overall Width 6.14″ (156.5 mm)
Overall Height 6.92″(176mm)
Baffle Cutout 5.71" (146 mm)
Net Weight 10.32lbs (4.68 kg)
Shipping Weight 11.02lbs (5.00 kg)
Carton Dimensions W x L x H 8.26" x 7.58" x 9.45" (210 x 190 x 240 mm)
