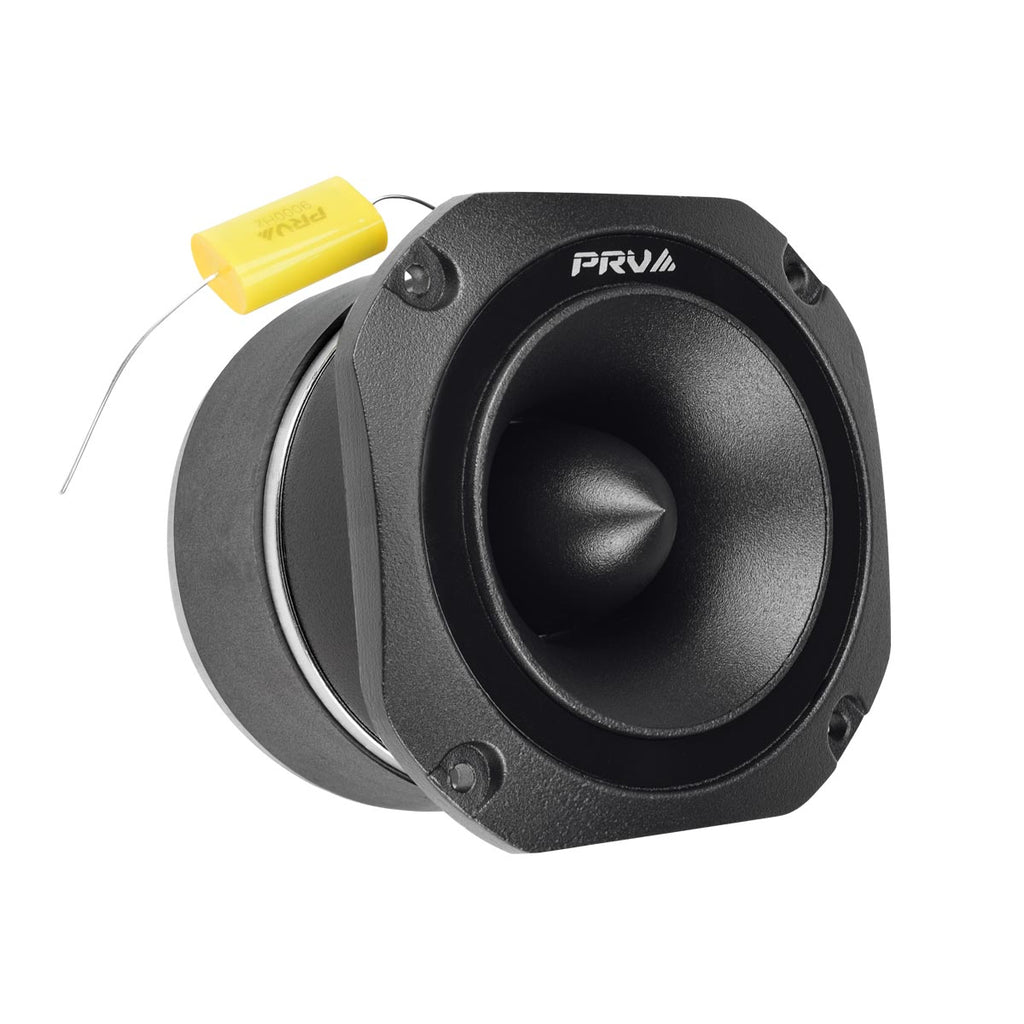

Add detail to any speaker with PRV Audio’s TW700Ti titanium bullet super tweeter! With high frequency response up to 20,000 Hz and a sensitivity of 107 dB at 1W/1m, the TW700Ti can keep up with even the most demanding speaker systems.

Flat sides allow for close side by side mounting. Double magnet that efficiently increases the magnetic field into the gap, delivering high sensitivity and low distortion.

High Frequency Bullet Tweeter, capable of adding brilliance and articulation to any professional loudspeaker system.


Highlights

  • Type: Super Tweeter
  • Nominal Impedance: 8Ω
  • Rated AES Power Handling (RMS): 120 Watts
  • Program Power: 240 Watts
  • Voice Coil Diameter: 1.5″

GENERAL SPECIFICATIONS

Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 120 Watts
Program Power 240 Watts
Sensitivity 2.83V at 1m 107 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
5000 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 3,500 – 20,000 Hz
Voice Coil Diameter 1.5”(38 mm)
Voice Coil Wire CCAW
Voice Coil Former Material Kapton
Diaphragm Material Titanium
Flux Density 1.60 T
Magnet Material Ferrite




EXTRA INFO

Overall Depth 2.97" (75.54 mm)
Mounting Depth 2.55" (64.9 mm)
Overall Width 4.05" (103 mm)
Overall Height 4.05" (103 mm)
Cutout Diameter 3.58" (91 mm)
Net Weight 3.48 lbs (1.58 kg)
Shipping Weight 3.62 lbs (1.64 kg)
Carton Dimensions W x L x H 4.5" x 4.5" x 3.25”
(114 x 114 x 82.5 mm)
