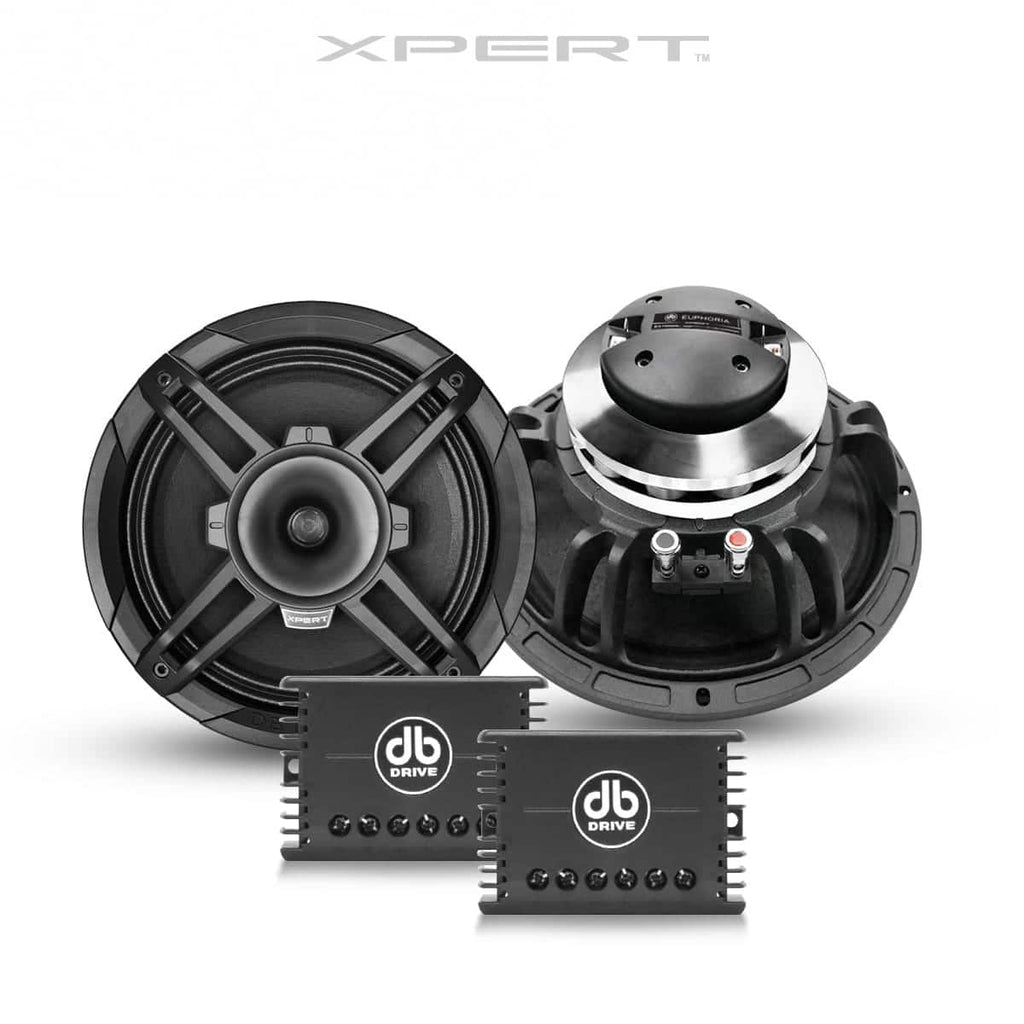

DB Drive Euphoria EX10NCD
Call for price: 786-713-0378
Vendor : DB Drive
Hurry! Only
0
units left in stock!
Couldn't load pickup availability
- 2.5″ (63.5mm) Midrange Voice Coil
- Neodymium Ring Magnet Assembly
- Rear Mounted Full Sized Compression Driver
- IP52 Rateed Paper Cone With Treated Cloth Surround
- Die-Cast Aluminum Basket With Radial Venting
- 1.4″ (36mm) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide
- 12dB Passive Crossover Included
- Protective Grills Included
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 54.8Hz |
| D.C. Voice Coil Resistance (Re) | 3.3Ω |
| Mechanical Quality Factor (Qms) | 7.18 |
| Electrical Quality Factor (Qes) | 0.41 |
| Total Quality Factor (Qts) | 0.39 |
| Compliance Equivalent Volume (Vas) | 46.9L |
| Mechanical Compliance (Cms) | 0.27 mm/N |
| Efficiency (1W/1M) | 106.1 dB |
| REPLACEMENT DIAPHRAGM: EXNCD-RC |
|---|
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 5.2Ω |
| Power Handling | 500 Watts |
| Dynamic Wattage | 1000 Watts |
| Sensitivity (1w/1m) | 106.1 dB |
| Voice Coil Diameter | 2.5″ (63.5mm) |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 4.68″ (118.98mm) |
| Mounting Diameter: | 9″ (230mm) |
