DS18 PS Shallow-Mount Water Resistant 10" Subwoofer 500 Watts Rms DVC 4-Ohm (Single Unit)

No review yet. Write Review
Regular price
$149.95
Regular price
Sale price
$149.95

Vendor : DS18

Hurry! Only
-1
units left in stock!
SATISFACTION
Guaranteed with effortless returns
DELIVERY
We ship to the contiguous 48 United States
PAYMENTS
Your security is our priority
WE ACCEPT
PayPal, Venmo & all major Credit Cards
  • 10" Shallow Subwoofer
  • MAX Power: 1000 Watts
  • RMS Power: 500 Watts
  • Impedance: 4-Ohm DVC
  • Ferrite Magnet
  • Water Resistant



TECHNICAL DATA


SPECS

SKU
RPSW10.4DD
Nominal Diameter
10" / 254 mm
Nominal Impedance
4+4 Ohms
RMS Power Handling
500 W
Maximum Power Handling
1000 W
Sensitivity (1w/1m)
84 dB
Frequency Response
20 - 800 Hz
Recommended Lo Pass Crossover
90 Hz


MOTOR

Voice Coil Diameter
2.5" / 63.5 mm
Voice Coil Former Material
Aluminum
Winding Material
Copper
Cone Material
Water Resistant PPI
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Matt Black
Magnet Material
Ferrite
Magnet Weight
58 Oz
Displacement Volume
0.8L / 0.028ft3


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
25.6L / 0.9ft3
Excursion (one way) Xmax
9.5 mm
Free Air Resonance Fs
32 Hz
Mechanical Factor Qms
3.612
Electrical Factor Qes
0.76
Total Factor Qts
0.63
Moving Mass Mms
154 g
Compliance Cms
0.161 mm/N
Bl Factor BI
8.57
Voice Coil Inductance Le
2.1 mH
Diaphragm Area Sd
336.54 cm2
DC Resistance Re
3.6+3.6 Ohms
Efficiency Bandwidth Product EBP
42


RECOMMENDED ENCLOSURES

Sealed Internal Volume (minimum)
14.2L / 0.5ft3
Sealed Box Output Response F3
44 Hz


MEASUREMENT

Overall Diameter
10.23" / 260 mm
Overall Depth
3.6" / 92 mm
Front Mount Baffle Cutout
9.2" / 234 mm
Mounting Depth
3" / 78 mm
Motor Diameter
6.5" / 165 mm
Gross Single Unit Weight (lb)
11.5
Single Unit Box Dimensions W x L x H (Inches)
12.25 x 11.5 x 4.75
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
24
Master Carton Dimensions W x L x H (Inches)
12.5 x 12 x 10



PRODUCT OVERVIEW

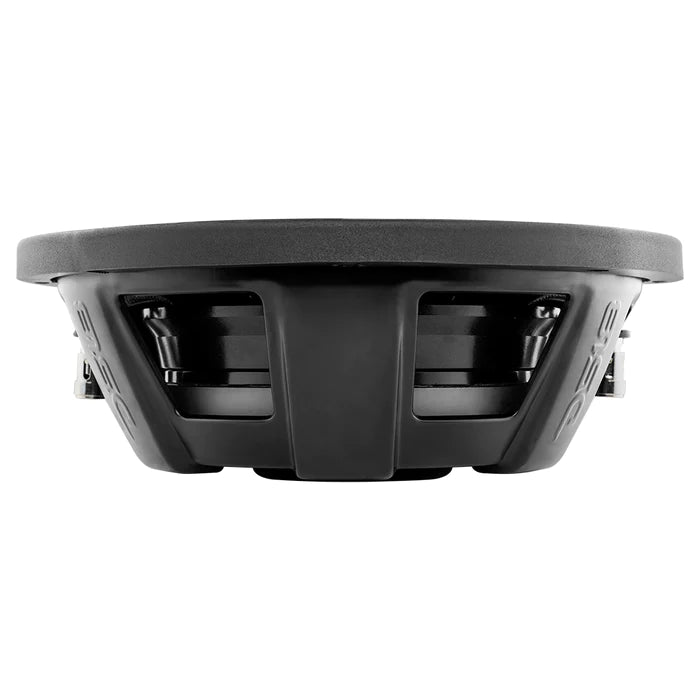

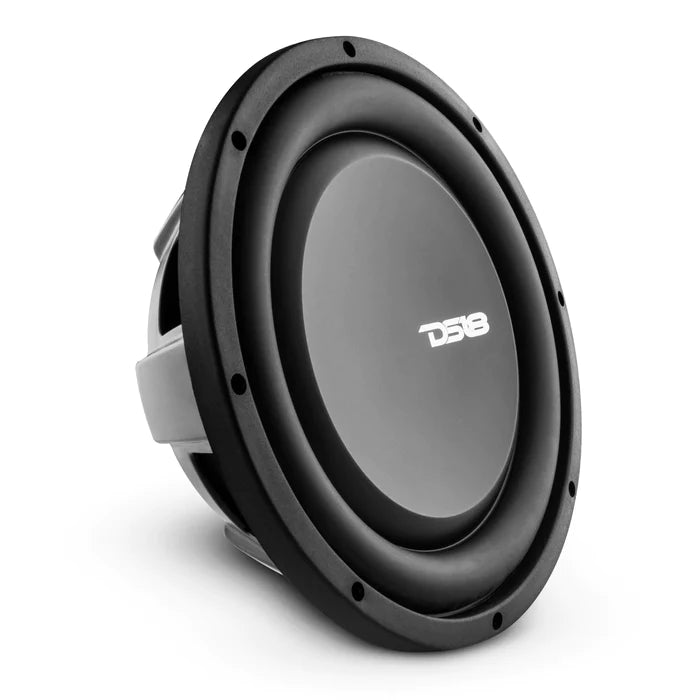

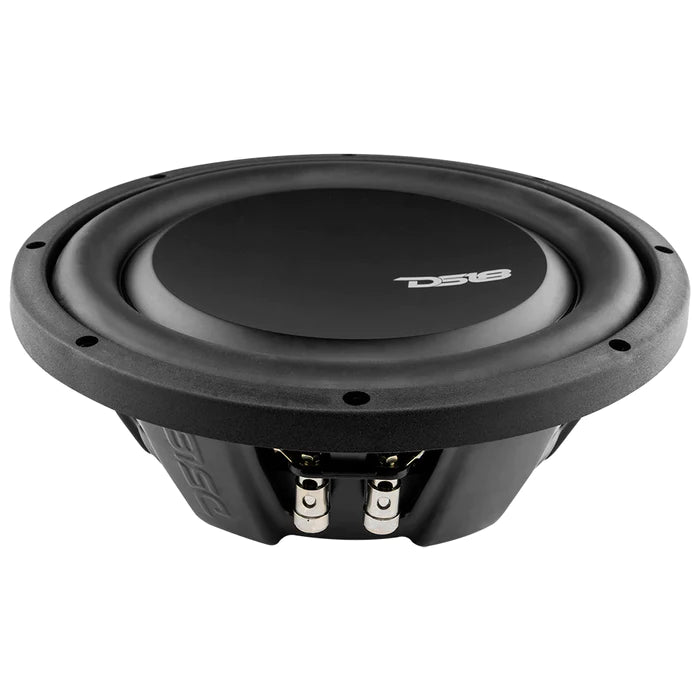

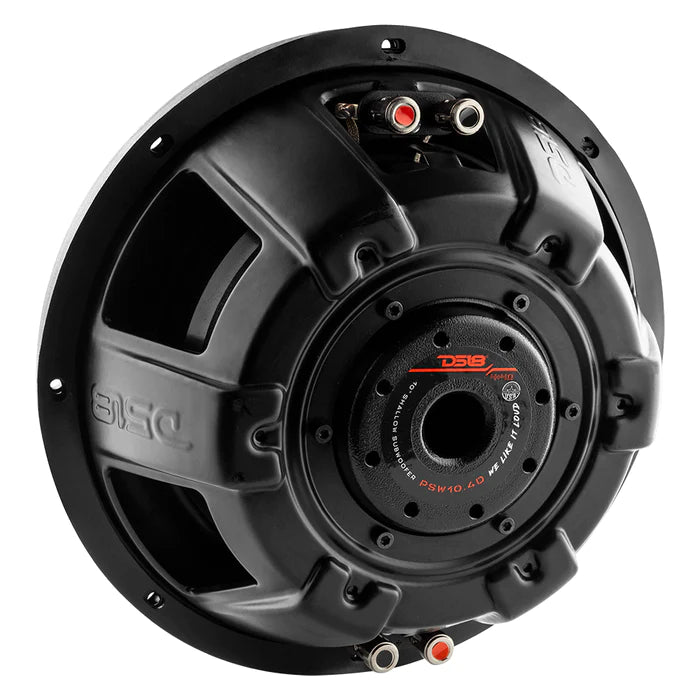

DS18 PSW10.4D


10” Water Resistant Shallow Subwoofer 1000W 4-Ohm DVC

There’s always space for bass with DS18’s PSW10.4D!
The PSW10.4D effortlessly fits into depths as small as 3.5", revolutionizing the way you enjoy bass in your vehicle. Ingeniously designed to thrive in both ported and sealed boxes, the PSW10.4D allows you to achieve incredible bass reproduction even in the tightest of spaces. But that's not all – its high-quality push terminals make connecting your speaker wire and amp a breeze, eliminating any hassle or frustration.
With a remarkable power handling capacity of 500 W RMS and a staggering 1000 W MAX Power, the PSW10.4D possesses the strength to deliver earth-shaking bass. But power is only part of the equation. With an impressive 84 dB sensitivity, this shallow mount subwoofer is finely tuned to reproduce heavy, crystal-clear bass with astonishing precision. The dual voice coil configuration on the PSW10.4D offer increased wiring options, greater amplifier compatibility, higher power handling, improved sound quality, flexibility in subwoofer configuration, and enhanced bass output.
The PSW10.4D boasts a cone equipped with DS18's renowned PPI Molding, making it water resistant and an ideal choice for marine vehicles, off-road adventures, or even your trusty two-wheeled companion. Additionally, its robust steel basket provides enhanced resistance against shock and vibration, ensuring that the subwoofer stays rock-solid, no matter the conditions.
With a remarkable (9.5mm) Xmax for a shallow subwoofer, the PSW10.4D generates full and deep bass that resonates with your soul. Paired with the appropriate box specifications, this subwoofer becomes a force to be reckoned with, unleashing low-frequency responses that you can feel in your vehicle.
Upgrade your car audio system today and let the PSW10.4D immerse you in a world of extraordinary bass that moves you to your core.
