DS18 PRO-ZT 6x9" Coaxial Mid-Range Loudspeaker with Water Resistant Cone Built-in Bullet Tweeter and Grill 275 Watts Rms 4-Ohm (Single Unit)

No review yet. Write Review
Regular price
$94.95
Regular price
Sale price
$94.95

Vendor : DS18

Hurry! Only
0
units left in stock!
SATISFACTION
Guaranteed with effortless returns
DELIVERY
We ship to the contiguous 48 United States
PAYMENTS
Your security is our priority
WE ACCEPT
PayPal, Venmo & all major Credit Cards
  • 6X9" Mid-Range
  • RMS Power: 275 Watts @ 4 Ohm
  • Ferrite & Neodymium Magnets
  • Built in Tweeter
  • Grill Included
  • Water Resistant

TECHNICAL DATA

SPECS

SKU
RPRO-ZT69D
Nominal Diameter
6x9”
Nominal Impedance
4 ohms
RMS Power Handing
275 WATTS
Maximum Power Handing
550 WATTS
Sensitivity (1w/1m)
98dB
Frequency Response
60Hz-22KHz
Recommended Hi Pass Crossover
80 Hz


MIDRANGE

Voice Coil Diameter
1.5” (38.1 mm)
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
27 oz
Magnet Material
Ferrite


TWEETER

Voice Coil Diameter
1”
Voice Coil Material
KAPTON
Winding Material
CCAW
Diaphragm Material
ALUMINUM ALLOY
Magnet Weight
0.44 oz
Magnet Material
NEODYMIUM (N38H)


THIELE & SMALL PARAMETERS

Vas
14.6927 LTR
Xmax
16 mm
Fs
85 Hz
Qms
3.906
Qes
0.639
Qts
0.549
Re
3.2 ohms


MEASUREMENTS

Overall Diameter
260 x 180 mm (10.24 x 7.09”)
Front Mount Baffle Cutout
219 x 150 mm (8.62 x 5.91”)
Mounting Depth
85 mm (3.35”)
Overall Depth
97 mm ( 3.81”)



PRODUCT OVERVIEW

DS18 PRO-ZT69

6x9” Water Resistant Mid-Range Loudspeaker with Built-in Bullet Tweeter and Grill 550W 4-Ohm

With its built-in bullet tweeter, grill, and impressive specs, the PRO-ZT69 will revolutionize your driving experience like never before.
Built around a neodymium magnet, the PRO-ZT69 generates an unmatched magnetic flux density in the air gap, resulting in tremendous action force in the voice coil.
The PRO-ZT69 features a frequency response range of 60Hz - 22KHz, allowing you to enjoy every nuance and detail of your favorite music. The PRO-ZT69 delivers accurate sound reproduction across the entire audio spectrum. With its high-powered tweeter and integrated filter, you'll experience impeccable highs that soar effortlessly. Coupled with a robust 6x9" cone to handle the low-end frequencies, the PRO-ZT69 ensures a harmonious and immersive listening experience.

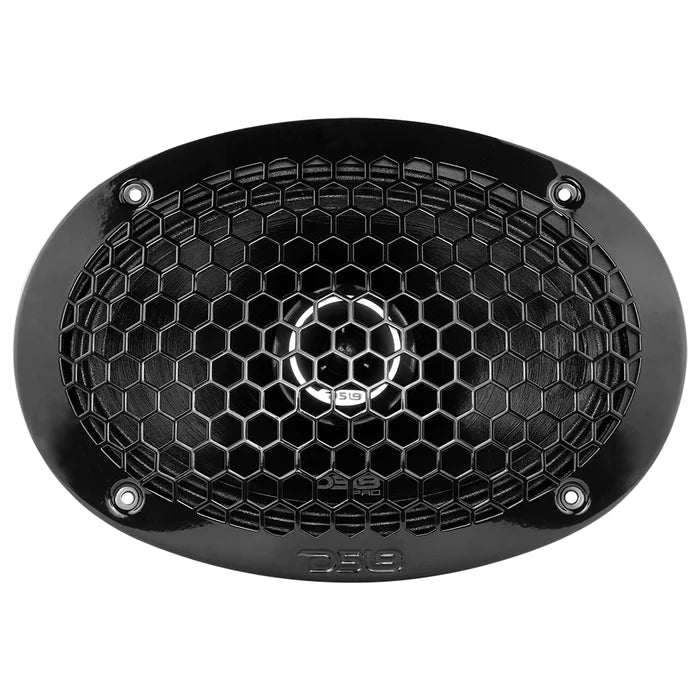

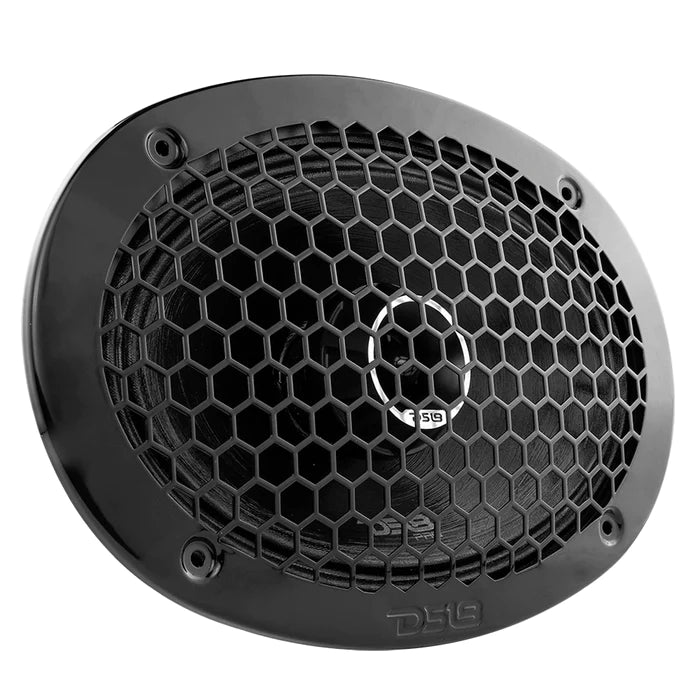

Included with the PRO-ZT69 is a durable grill, safeguarding against accidental kicks and scuffs. Rest assured knowing that your investment is shielded from potential damage, allowing you to enjoy your music worry-free.
With a nominal impedance of 4 Ohms, the PRO-ZT69 is optimized for seamless integration into your car’s audio system. Its RMS power handling of 275W and MAX power handling of 550W ensure that every beat and note is delivered with remarkable clarity and precision. The PRO-ZT69 is not just powerful; it's also incredibly sensitive. With a sensitivity rating of 98dB (1w/1m), you'll experience an impressive sound output even at lower power levels.
Elevate your driving experience with the PRO-ZT69 and feel the power of music like never before.
