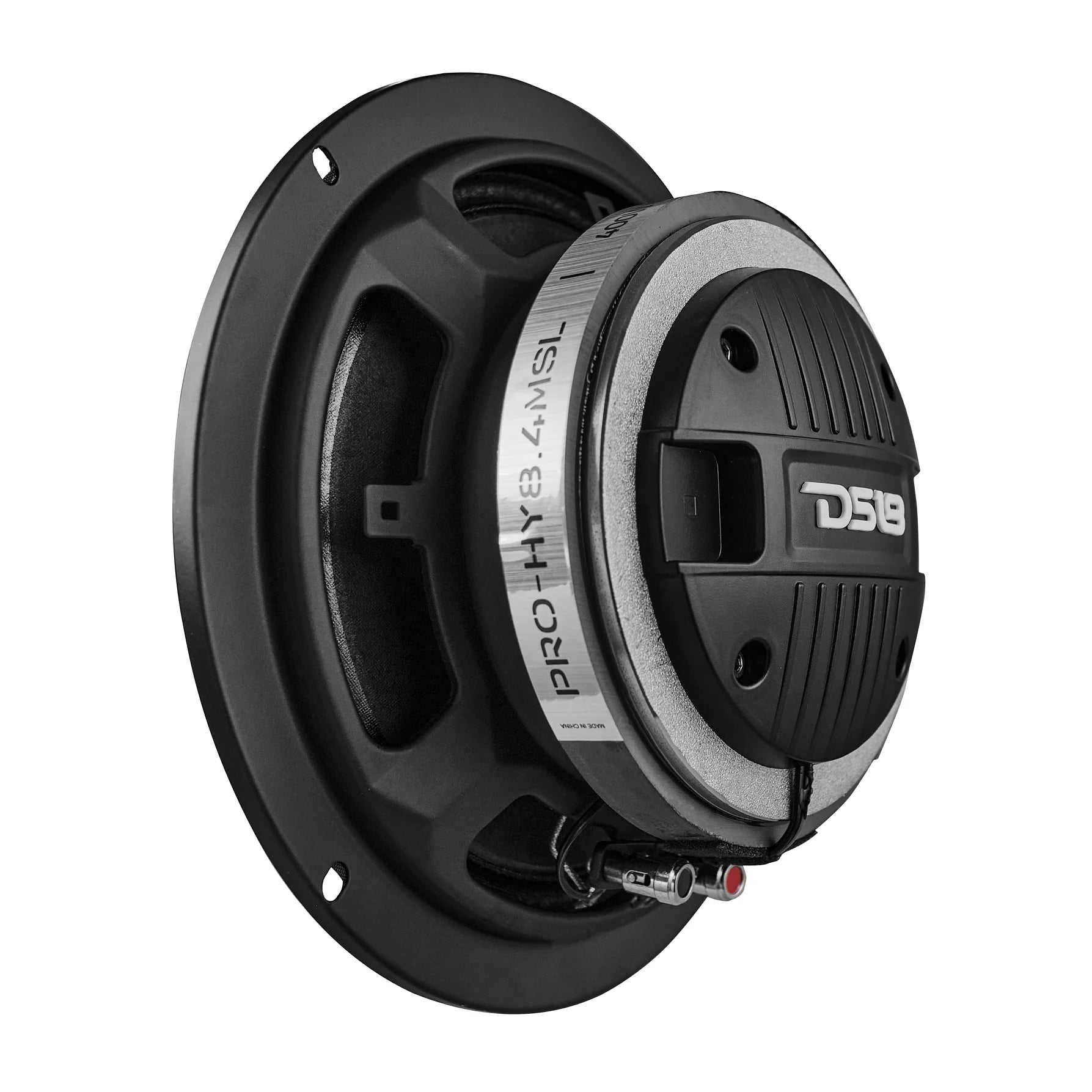

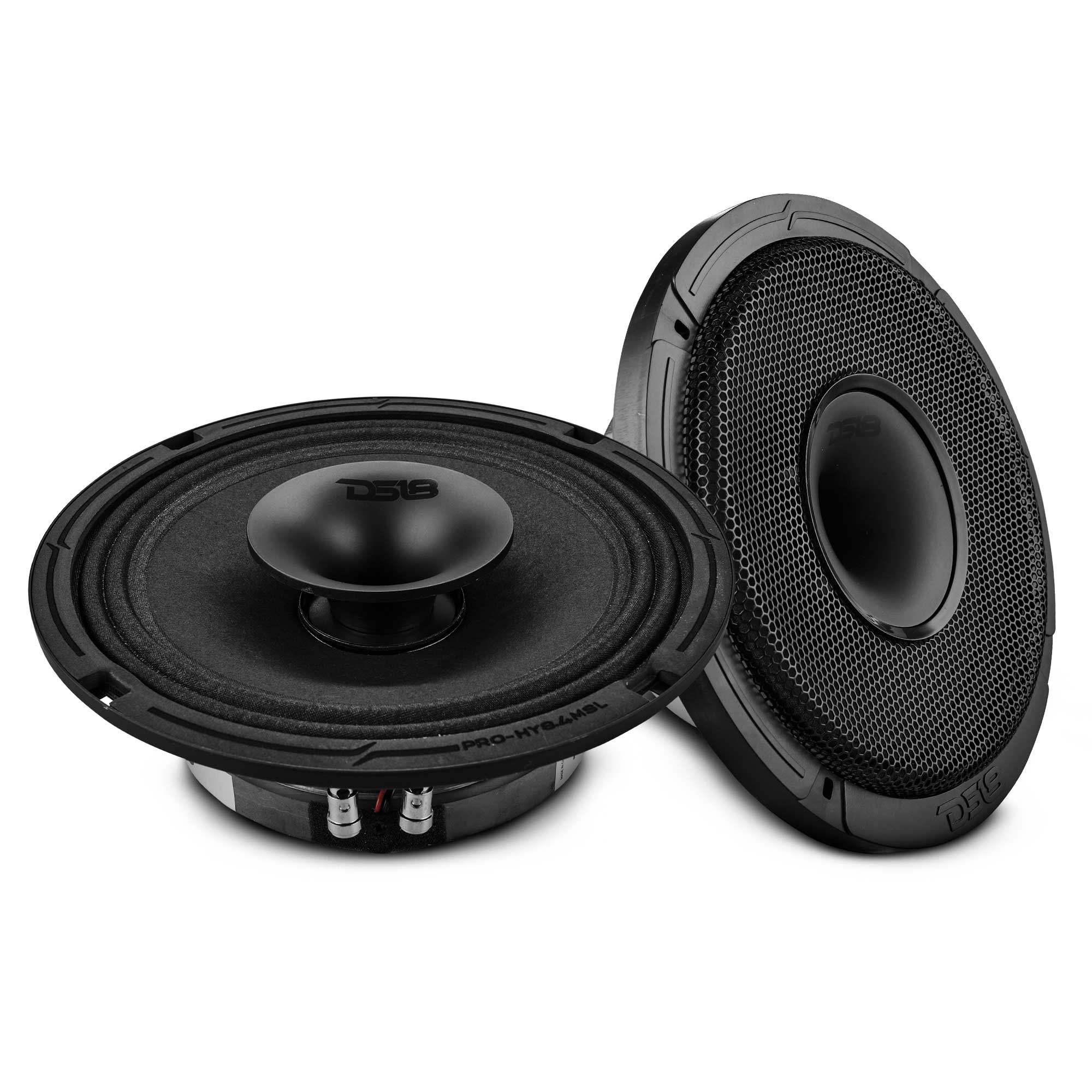

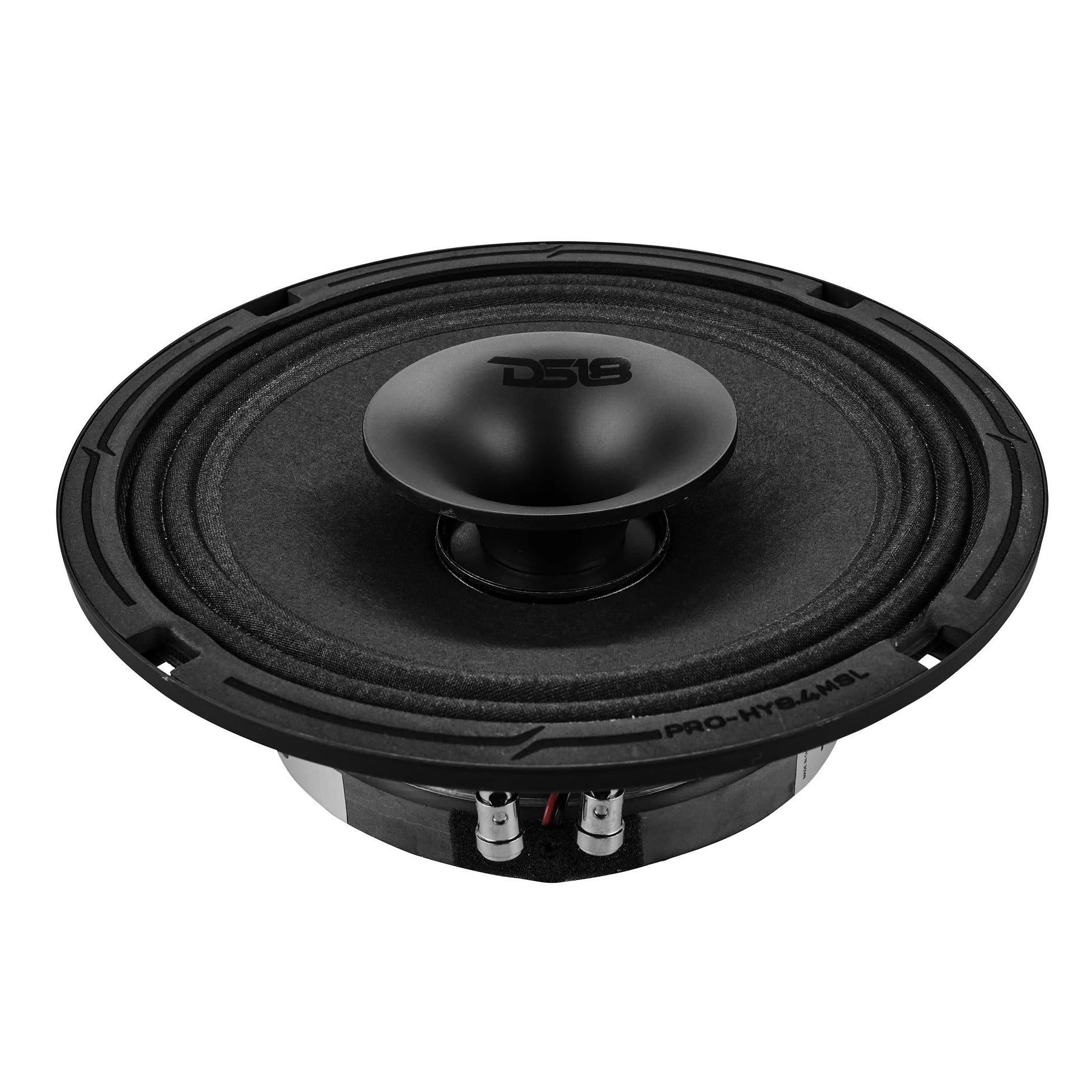

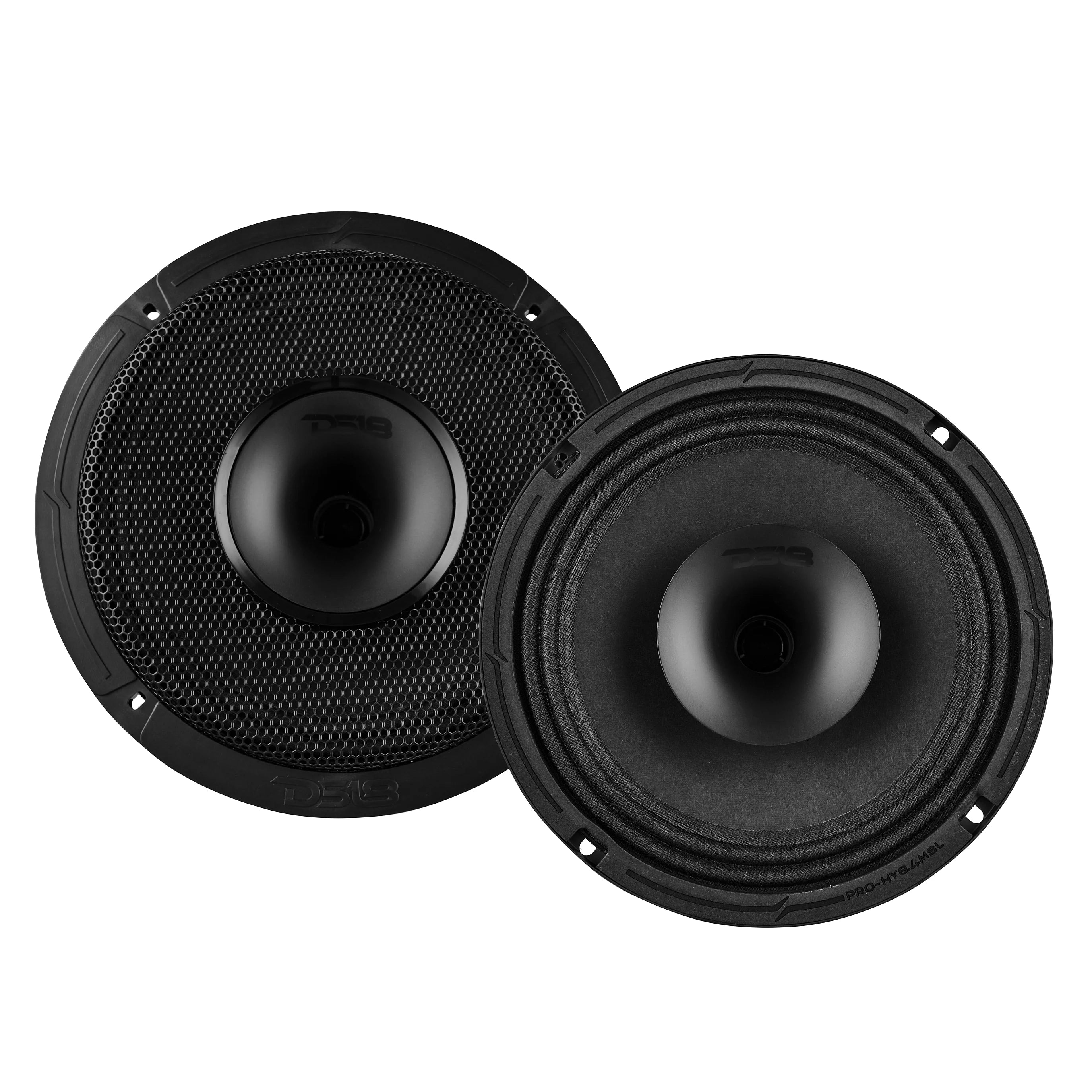

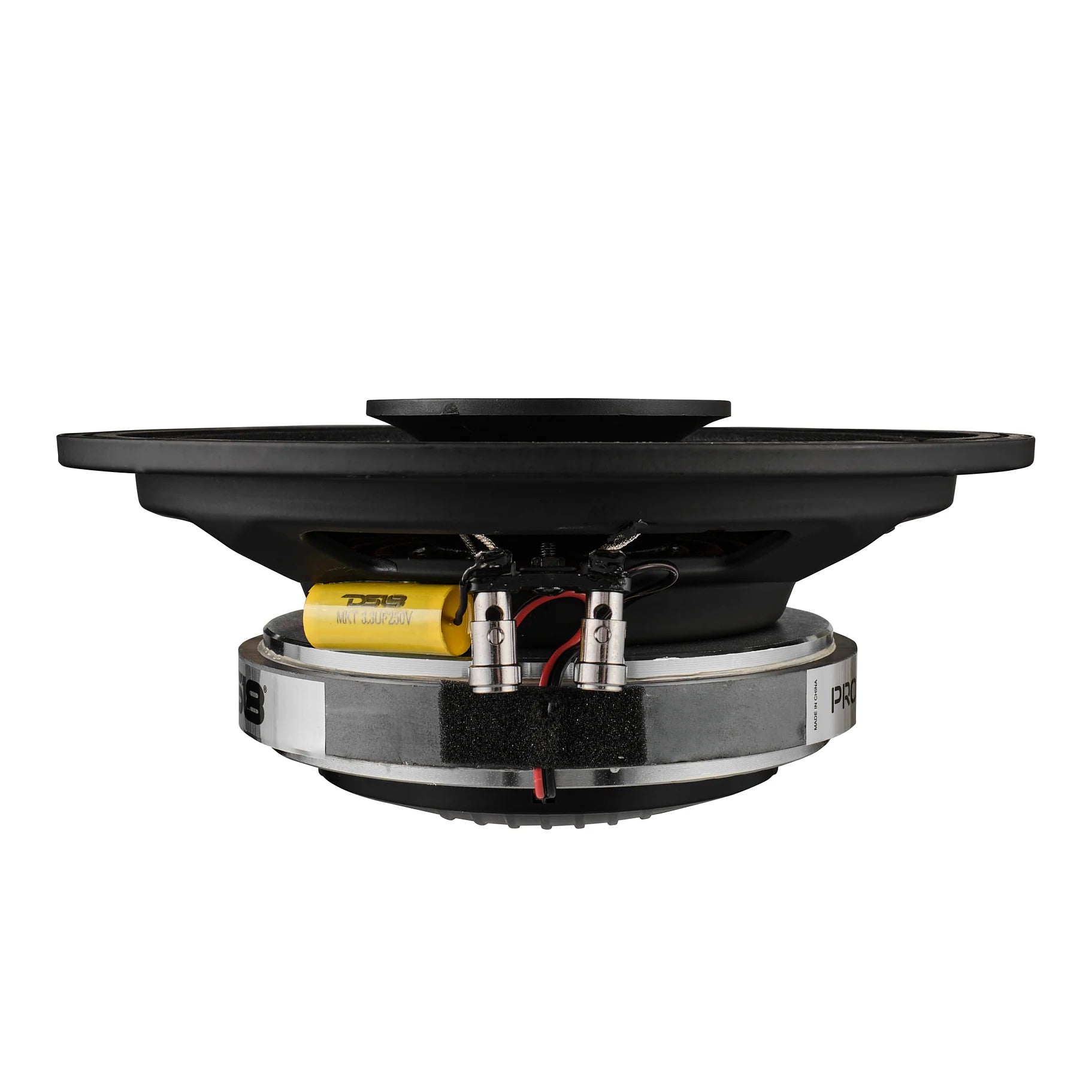

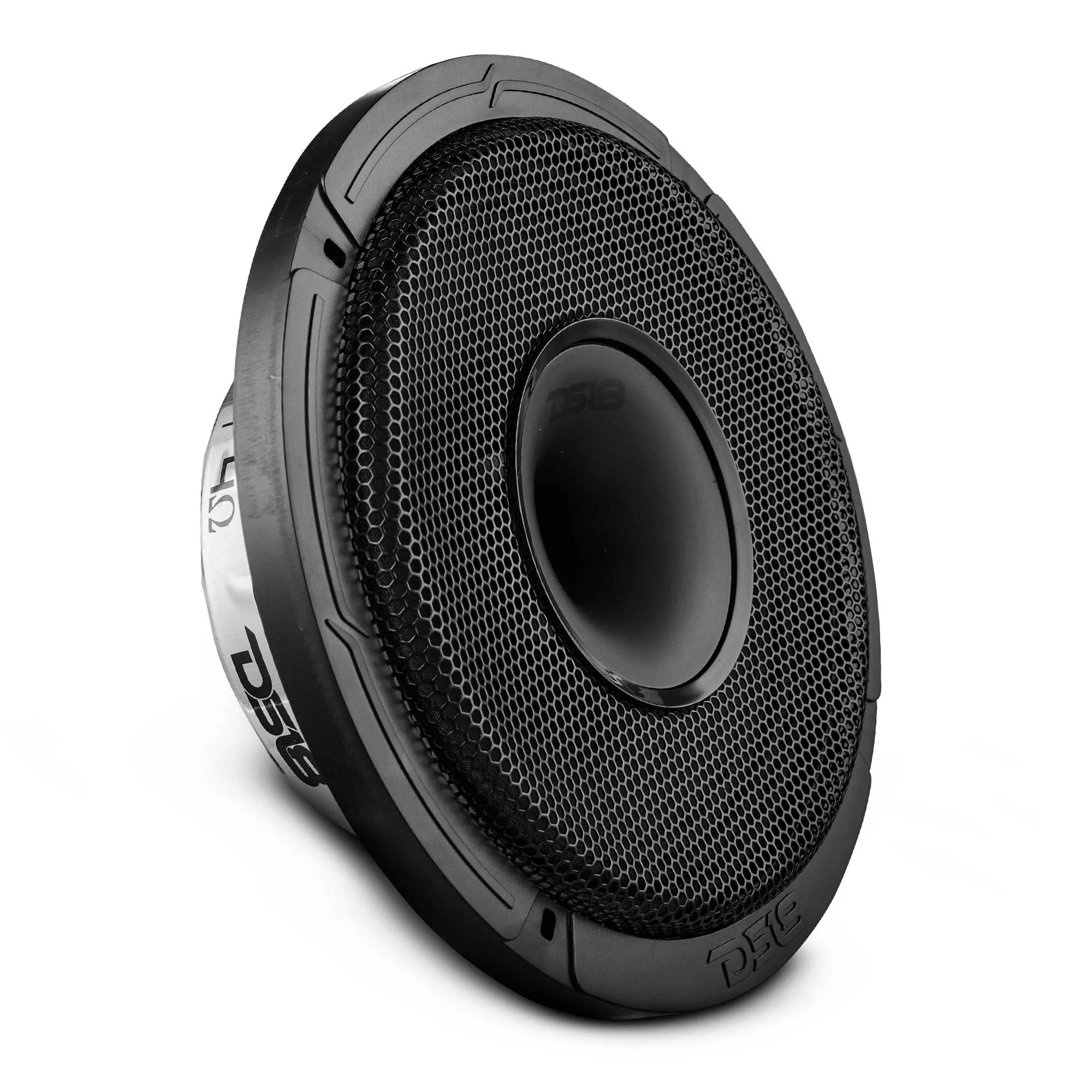

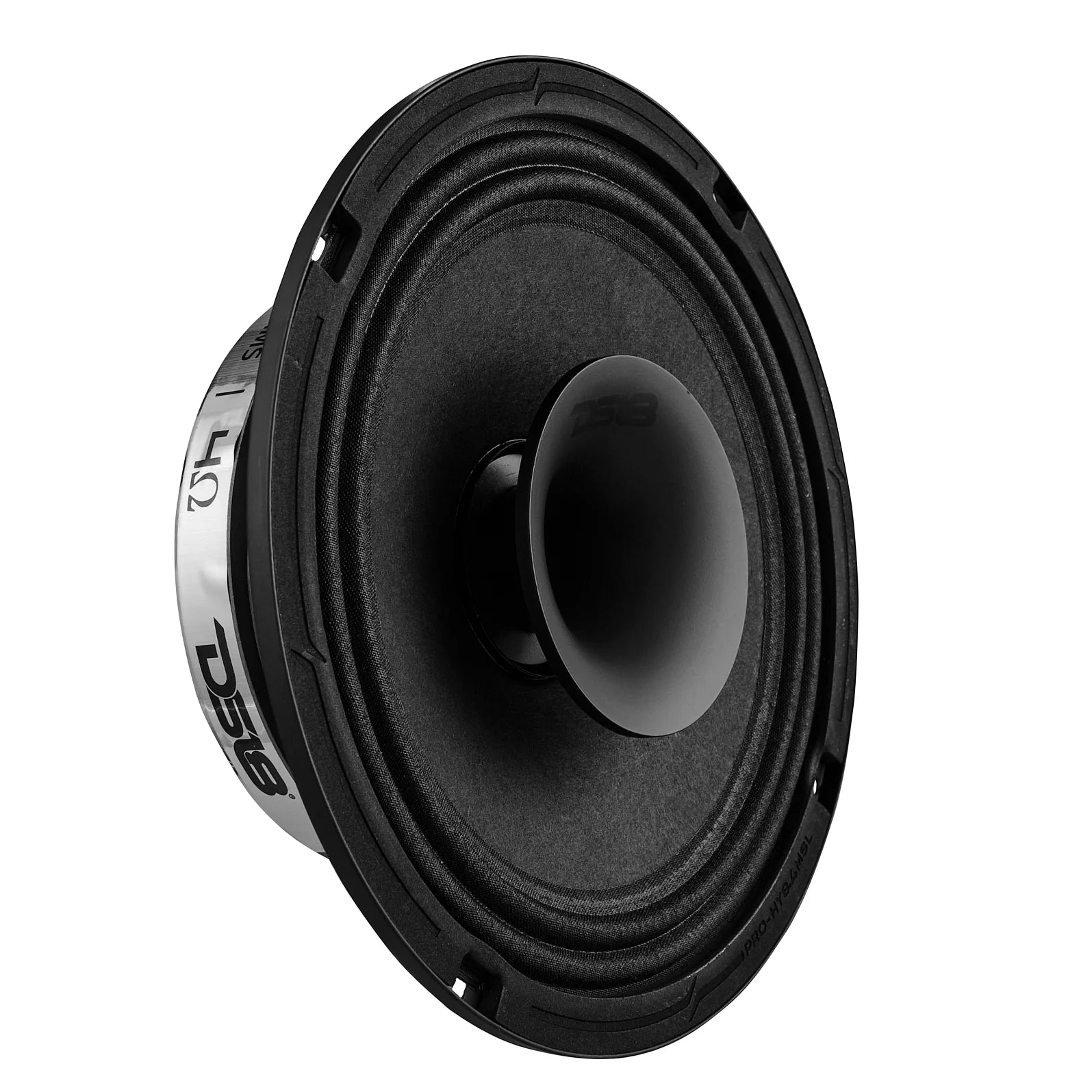

DS18 PRO 8" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 200 Watts Rms 8-Ohm (Single Unit)

No review yet. Write Review
Regular price
$76.95
Regular price
Sale price
$76.95

Vendor : DS18

Hurry! Only
0
units left in stock!
SATISFACTION
Guaranteed with effortless returns
DELIVERY
We ship to the contiguous 48 United States
PAYMENTS
Your security is our priority
WE ACCEPT
PayPal, Venmo & all major Credit Cards
  • 8" Mid-Range
  • RMS Power: 200 Watts
  • Impedance: 8-Ohm
  • Ferrite & Neodymium Magnets
  • Shallow, With Grill
  • With Built in Driver

TECHNICAL DATA


SPECS

SKU
RPRO-HY8MSLD
Nominal Diameter
8" / 203.2mm
Nominal Impedance
8 Ohm
RMS Power Handling
200W
MAX Power Handling
400W
Sensitivity (1w/1m)
94dB
Frequency Response
100Hz - 20Khz
Recommended HI Pass Crossover
120Hz
Number of ways
2 ways
Pair or Single
Single
Grill Included
Yes


WOOFER SPECIFICATIONS

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
29.5 Oz
Displacement Volume


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
7.85L / 0.277ft3
Excursion (one way) Xmax
2mm
Free Air Resonance Fs
114Hz
Mechanical Factor Qms
6.282
Electrical Factor Qes
0.984
Total Factor Qts
0.851
Mechanical Mass Mms
16.357g
Mechanical Compliance Cms
118.033 mm/N
BL Factor BL
8.817
Voice Coil Inductance Le
12.06mH
Cone Area Sd
216.424 Cm2
DC Resistance Re
6.5 ohm
Mechanical Mass w/o air Mmd
14.527g


DRIVER SPECIFICATIONS

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3" / 76.2mm


SPEAKER MEASUREMENT

Overall Diameter
8.62" / 219mm
Overall Depth
4" / 102.5mm
Front Mount Baffle Cutout
7.12" / 181mm
Mounting Depth
3.11" / 79mm
Motor Diameter
5.27" / 134mm


SHIPPING INFO

Gross Single Unit Weight
5.75
Single Unit Box Dimensions L x W x H (Inches)
9 x 9 x 4.75
Quantity of Units in Master Carton
8
Gross Master Carton Weight
49
Master Carton Dimensions L x W x H (Inches)
18.5 x 18.5 x 10.25

PRODUCT OVERVIEW


DS18 PRO-HY8MSL


PRO 8” Shallow Hybrid Mid-Range Ferrite Loudspeaker with Built-in Neodymium Driver and Grill 400W 8-Ohm

Your pursuit of perfect sound ends with the introduction of the PRO-HY8MSL! We've taken our Pro-Audio midrange and merged it seamlessly with a high-intensity driver, and packaged it into a shallow and slim design.
With 400 watts of maximum power handling and 200 watts RMS power handling, the PRO-HY8MSL boast astonishing loudness with remarkable clarity at even the highest volumes. Immerse yourself in a world of rich musical response, thanks to the frequency response range of 100Hz to 20KHz. The PRO-HY8MSL’s excel in reproducing crystal-clear audio with astonishing depth and precision. And with a nominal impedance of 8 ohms and sensitivity of 94dB, you'll experience every nuance and detail of your favorite tracks like never before.
With its sleek dimensions of 8.62 inches in width and a mounting depth of 3.11 inches, this speaker is incredibly versatile, fitting effortlessly into a wide range of applications.
One of the standout features of this speaker is its titanium diaphragmed driver. Titanium is known for its exceptional stiffness-to-weight ratio, resulting in fast and accurate response across a wide frequency range. The magnet used in the driver is made of neodymium this allows the driver to efficiently convert electrical signals into sound waves, contributing to its overall performance and power handling capabilities. To further optimize the driver's performance, a 3-inch horn diameter is incorporated. The horn aids in directing and focusing the sound waves, ensuring maximum dispersion and projection.
Prepare to be blown away by the power, clarity, and precision of the PRO-HY8MSL.
