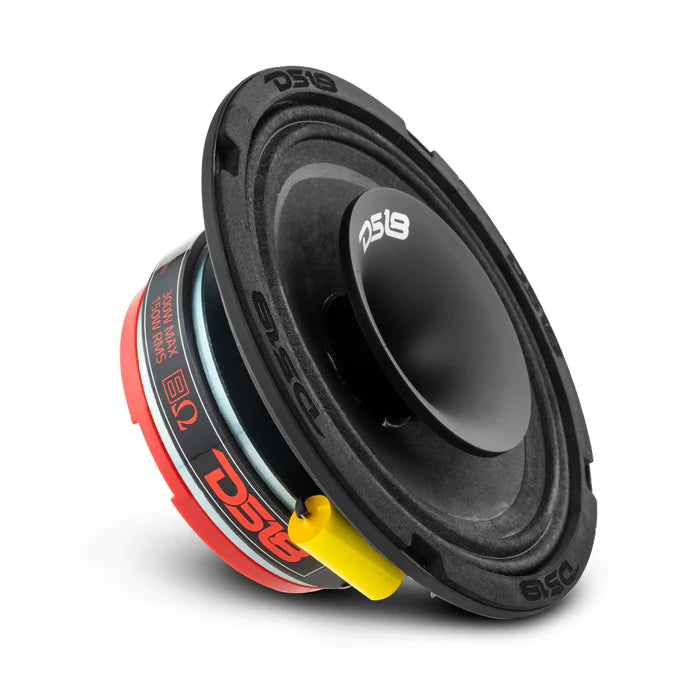

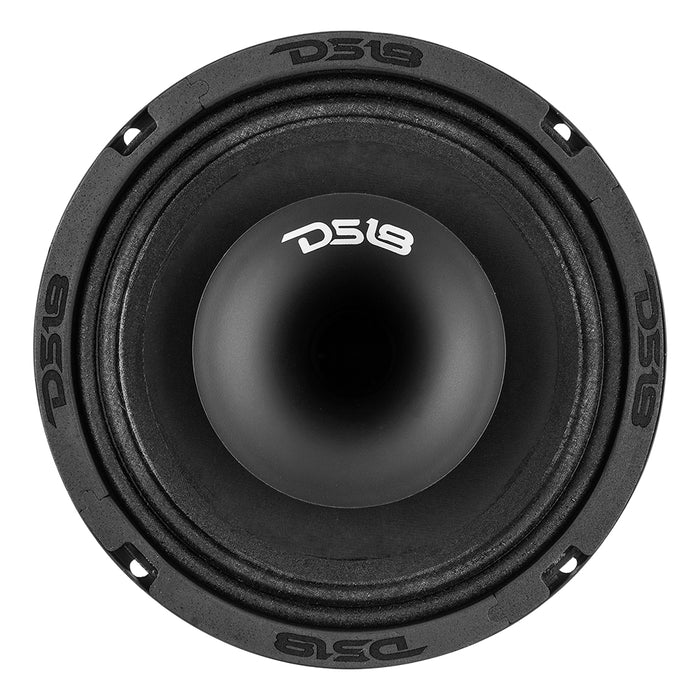

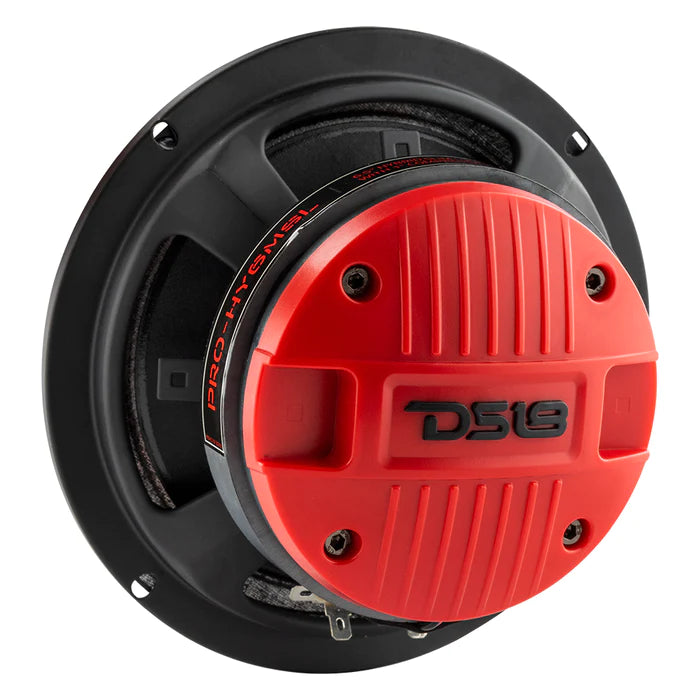

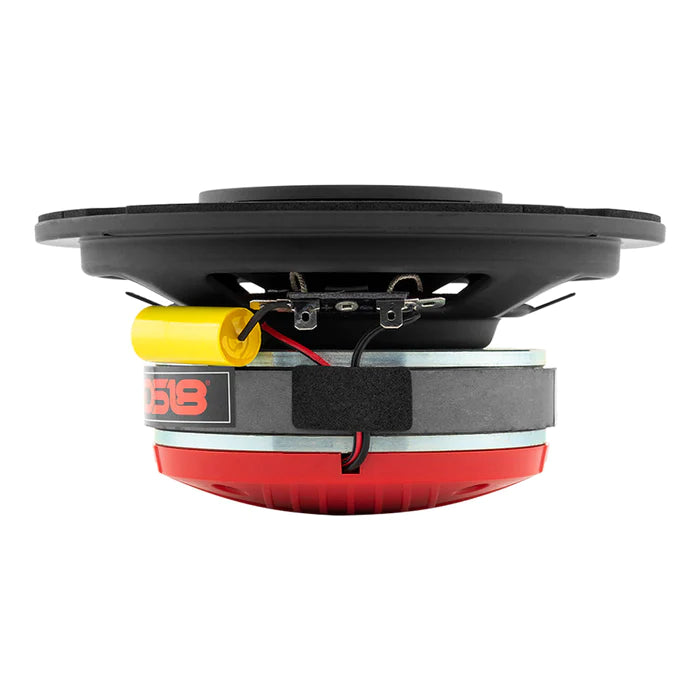

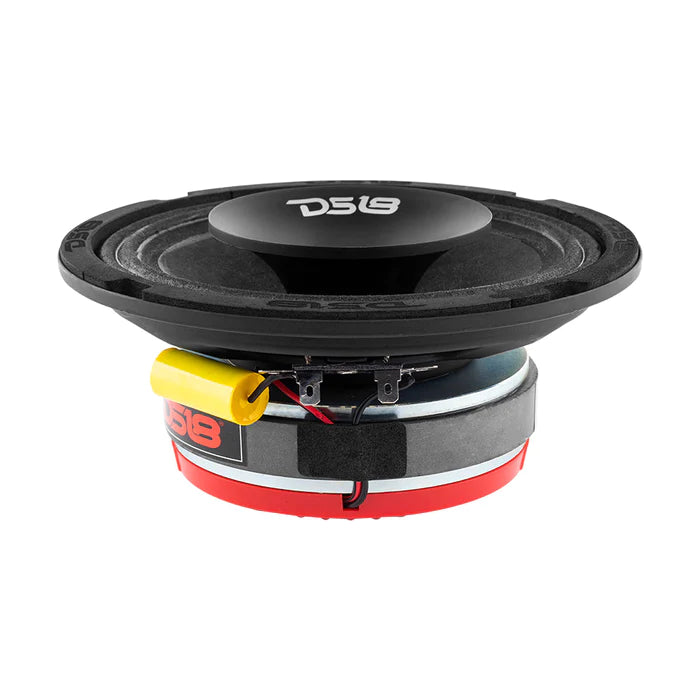

DS18 PRO 6.5" Shallow Coaxial Hybrid Mid-Range Loudspeaker with Built-in Driver 150 Watts Rms 8-Ohm (Single Unit)

No review yet. Write Review
$66.95
$66.95

Vendor : DS18

Add to wishlist
Hurry! Only
0
units left in stock!
SATISFACTION
Guaranteed with effortless returns
DELIVERY
We ship to the contiguous 48 United States
PAYMENTS
Your security is our priority
WE ACCEPT
PayPal, Venmo & all major Credit Cards
  • 6.5" Mid-Range
  • RMS Power: 150 Watts
  • Impedance: 8-Ohm
  • Ferrite & Neodymium Magnets

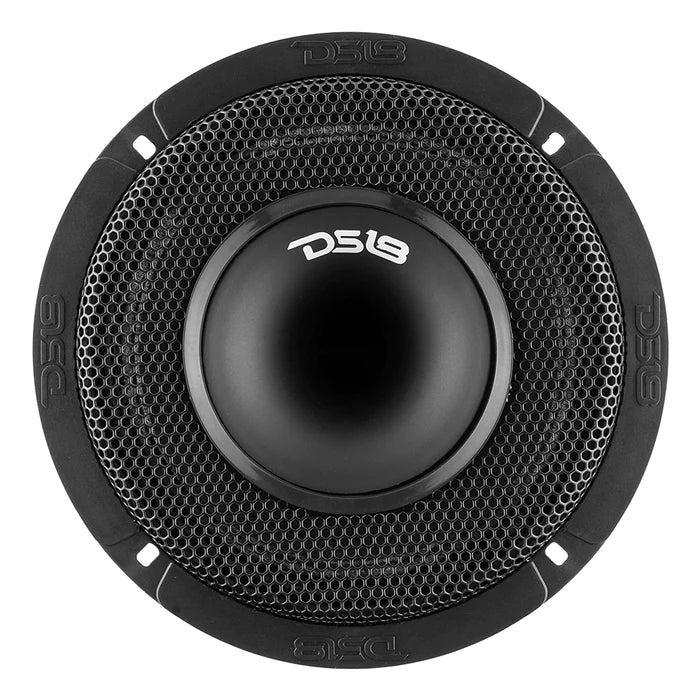

  • Shallow, With Grill
  • With Built in Driver

TECHNICAL DATA


SPECS

SKU
RPRO-HY6MSLD
Nominal Diameter
6.5" / 165.1mm
Nominal Impedance
8 Ohm
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
93dB
Frequency Response
120Hz-20Khz
Recommended HI Pass Crossover
140Hz
Number of ways
2 ways
Pair or Single
Single
Grill Included
Yes


WOOFER SPECIFICATIONS

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Cone Material
Paper
Surround Material
Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Red
Magnet Material
Ferrite
Magnet Weight
17.5 Oz
Displacement Volume


THIELE & SMALL PARAMETERS

Equivalent Volume Vas
3.45L / 0.121ft3
Excursion (one way) Xmax
2mm
Free Air Resonance Fs
161Hz
Mechanical Factor Qms
7.653
Electrical Factor Qes
1.496
Total Factor Qts
1.252
Mechanical Mass Mms
6.875g
Mechanical Compliance Cms
129.952 mm/N
BL Factor BL
5.621
Voice Coil Inductance Le
10.78mH
Cone Area Sd
136.848 Cm2
DC Resistance Re
6.5 ohm
Mechanical Mass w/o air Mmd
5.955g


DRIVER SPECIFICATIONS

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
3" / 76.2mm


SPEAKER MEASUREMENT

Overall Diameter
6.92" / 176mm
Overall Depth
3.52" / 89.5mm
Front Mount Baffle Cutout
5.6" / 142mm
Mounting Depth
2.77" / 70.5mm
Motor Diameter
4.33" / 110mm


SHIPPING INFO

Gross Single Unit Weight
3.75
Single Unit Box Dimensions L x W x H (Inches)
7.25 x 7.25 x 4.25
Quantity of Units in Master Carton
8
Gross Master Carton Weight
32
Master Carton Dimensions L x W x H (Inches)
15.25 x 15.25 x 9.5
