DS18 PRO 10" Neodymium Water Resistant Woofer 400 Watts Rms 4-Ohm SVC (Single Unit)

No review yet. Write Review
Regular price
$179.95
Regular price
Sale price
$179.95

Vendor : DS18

Hurry! Only
0
units left in stock!
SATISFACTION
Guaranteed with effortless returns
DELIVERY
We ship to the contiguous 48 United States
PAYMENTS
Your security is our priority
WE ACCEPT
PayPal, Venmo & all major Credit Cards
  • 10" Woofer
  • MAX Power: 800 Watts
  • RMS Power: 400 Watts
  • Impedance: 4-Ohm
  • Neodymium Magnet
  • Water Resistant

TECHNICAL DATA


SPECS

SKU
RPRO-W10.4SNEOD
Nominal Diameter
10’’ / 254mm
Nominal Impedance
4 ohms
RMS Power Handling
400W
MAX Power Handling
800W
Sensitivity (1w/1m)
91 dB
Frequency Response
40Hz-5KHz
Recommended Lo Pass Crossover
180hz


MOTOR

Voice Coil Diameter
2.5’’ / 65.5mm
Voice Coil Former Material
Til
Winding Material
SV
Cone Material
Water resistant paper
Dust Cap Material
Water resistant paper
Surround Material
Rubber
Basket Material
Steel
Basket Color/Finish
Matte Black
Magnet Material
Ferrite
Magnet Weight
8.8 oz
Displacement Volume
1.8L / 0.0635ft3


THIELE & SMALL PARAMETERS

Equivalent Volume VAS
23.43L / 0.827ft3
Excursion (one way) XMAX
12.2 mm
Free Air Resonance FS
40 Hz
Mechanical Factor QMS
5.171
Electrical Factor QES
0.5
Total Factor QTS
0.38
Moving Mass MMS
91.85g
Compliance CMS
0.16mm/N
Bl Factor BI
12.95
Voice Coil Inductance LE
0.4578mH
Diaphragm Area SD
352.99 cm2
Dc Resistance RE
3.2 ohms
Efficiency Bandwidth Product EBP
80


RECOMMENDED ENCLOSURES

Sealed Internal Volume
1.4ft3
Sealed Box Output Response F3
53Hz
Ported Internal Volume
1.5ft3
Port Size *Square (W x H x Long)
3" x 3" x 5.6" / 76 x 76 x 142mm
Port Tunning Frequency FB
45Hz
Ported Box Output Response F3
38Hz


MEASUREMENT

Overall Diameter
10.4" / 264 mm
Overall Depth
4.8" / 122mm
Front Mount Baffle Cutout
9.1" / 231 mm
Mounting Depth
4.25" / 108mm
Motor Diameter
3.42" / 87mm
Dimensions L x W x H (Inches)
10.87 X 10.87 X 5.5
Product Weight (lb)
7
M/C Dimensions L x W x H (Inches)
22.5 x 12 x 11.5
M/C Weight (lb)
29.5
M/C Qty
4
Sold in
Single



PRODUCT OVERVIEW

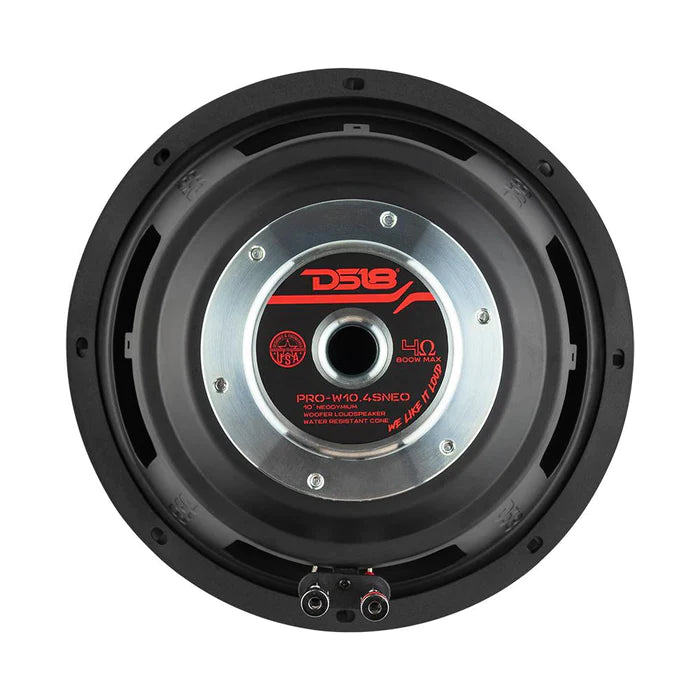

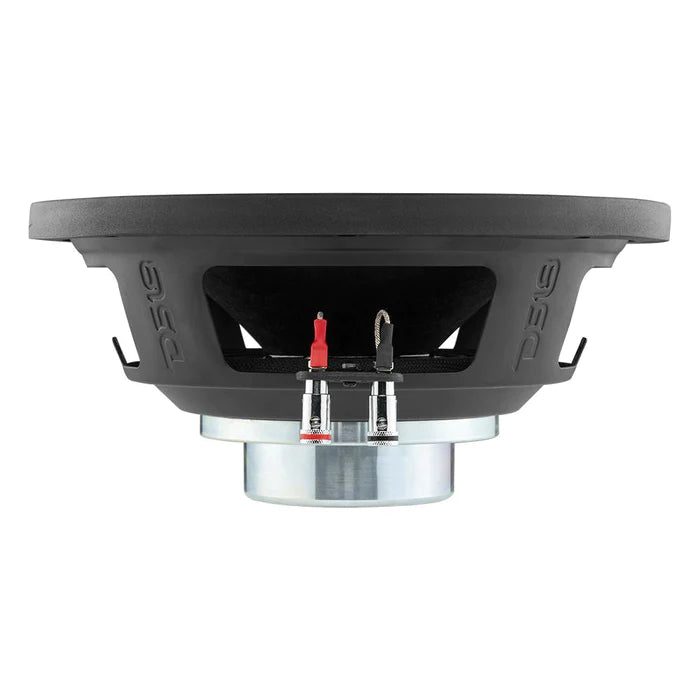

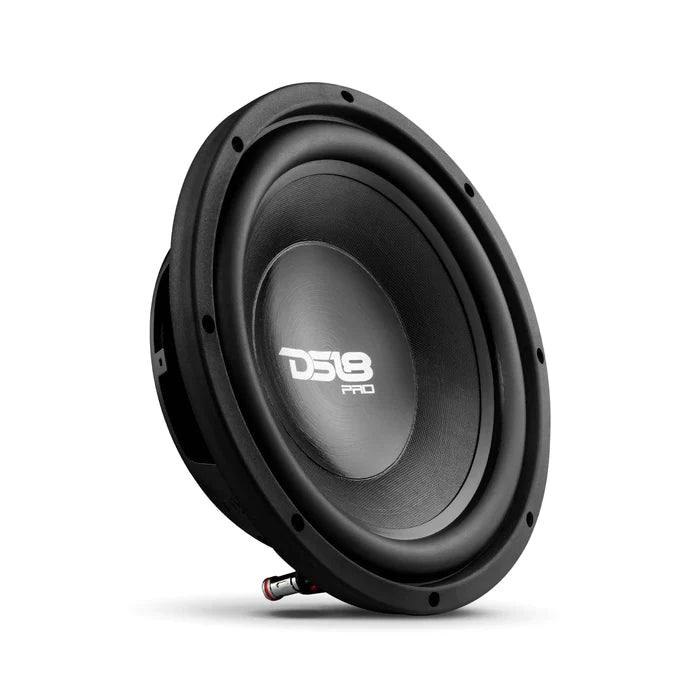

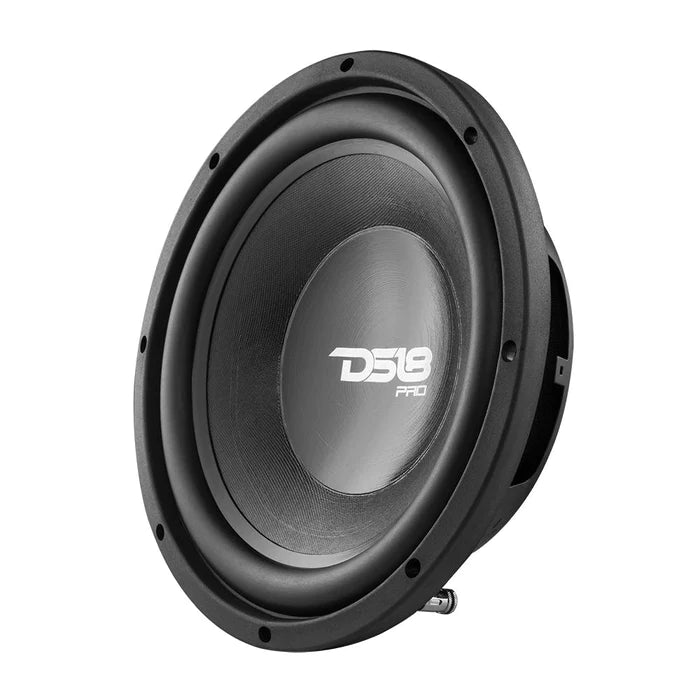

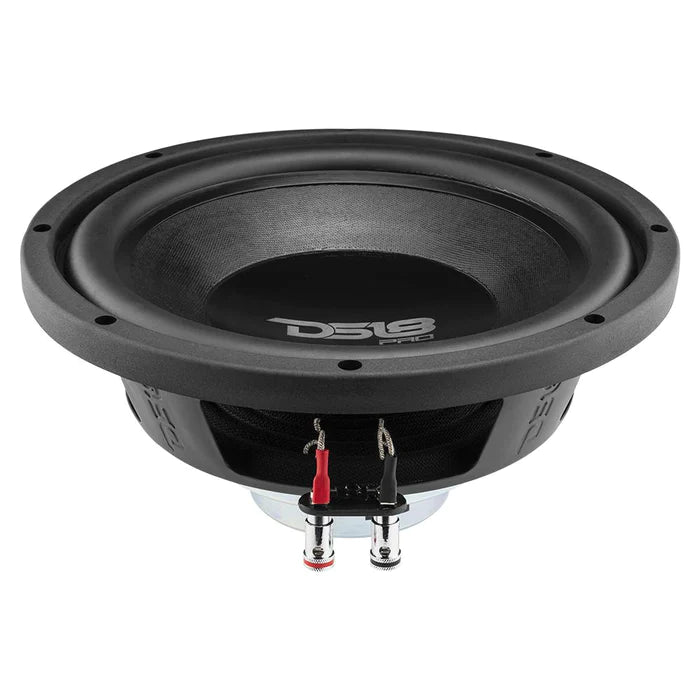

DS18 PRO-W10.4SNEO


10" Water Resistant Motorcycle & Powersports Woofer 800 Watts 4-Ohm Svc

Experience the power of superior sound on your motorcycle with DS18’s PRO-W10.4SNEO!
DS18’s PRO-W10.4SNEO is a full-size water-resistant woofer that withstands the harshest elements without compromising on build quality. Unlike traditional speakers, this hybrid marvel features a unique design that incorporates a water-resistant cone, ensuring zero corrosion or deformation caused by water exposure.
We've gone the extra mile to guarantee longevity and unrivaled performance. The magnet and basket have been expertly coated to resist corrosion, ensuring that your woofer remains in pristine condition even in challenging environments. Crafted from lightweight, water-resistant paper, the cone is supported by a robust rubber surround, preventing water from penetrating the inner workings of the woofer.
DS18’s PRO-W10.4SNEO boasts an impressive power handling capacity of 400 watts RMS and a peak power of 800 watts, ensuring that every beat is delivered with precision and impact. Equipped with a 2.5" voice coil, this woofer is designed to withstand the demands of high-performance audio systems. The voice coil's former material and winding material ensure reliable operation and optimal performance. In addition to its remarkable water resistance and impressive power handling, the DS18 PRO-W10.4SNEO also features a neodymium motor structure, taking its performance to a whole new level. The neodymium motor structure gives the PRO-W10.4SNEO enhanced efficiency and responsiveness, resulting in tighter, more controlled audio reproduction. With a sensitivity of 88dB and a frequency response ranging from 40Hz to 5KHz, every note and every beat is delivered with clarity and depth.
Amplify your experience with our single voice coil 2-ohm and 4-ohm versions, allowing you to optimize your ohm load according to your amplifier's specifications.
Experience the ultimate combination of power, durability, and unrivaled performance with DS18’s PRO-W10.4SNEO. Its superior design and exceptional features make it a must-have for motorcycle riders and powersports enthusiasts seeking an audio solution that can withstand the rigors of the road.
