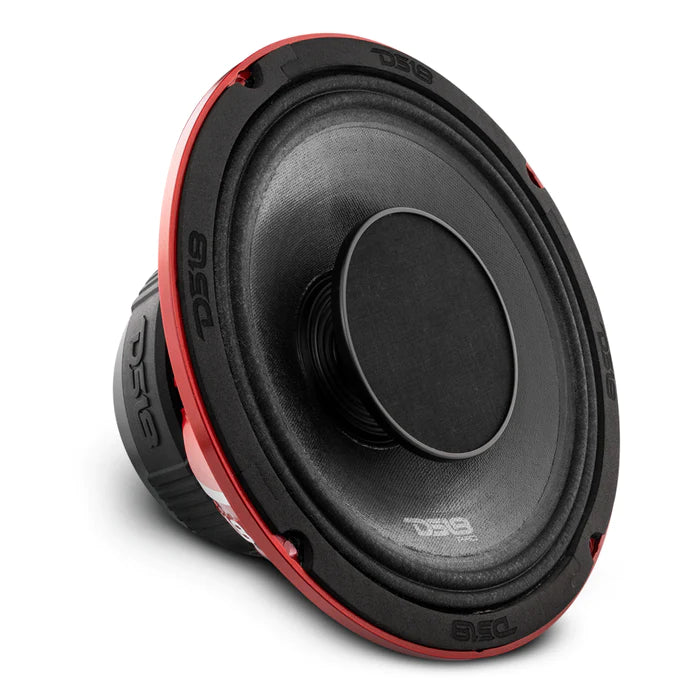

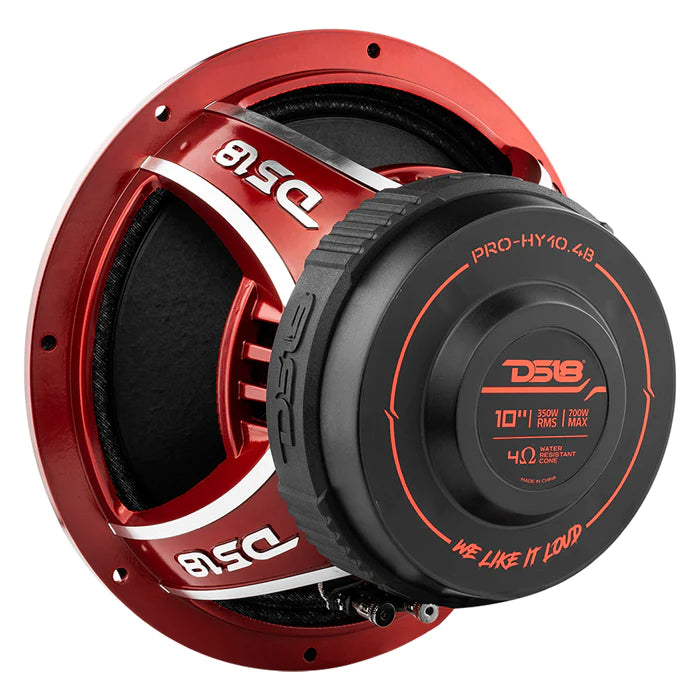

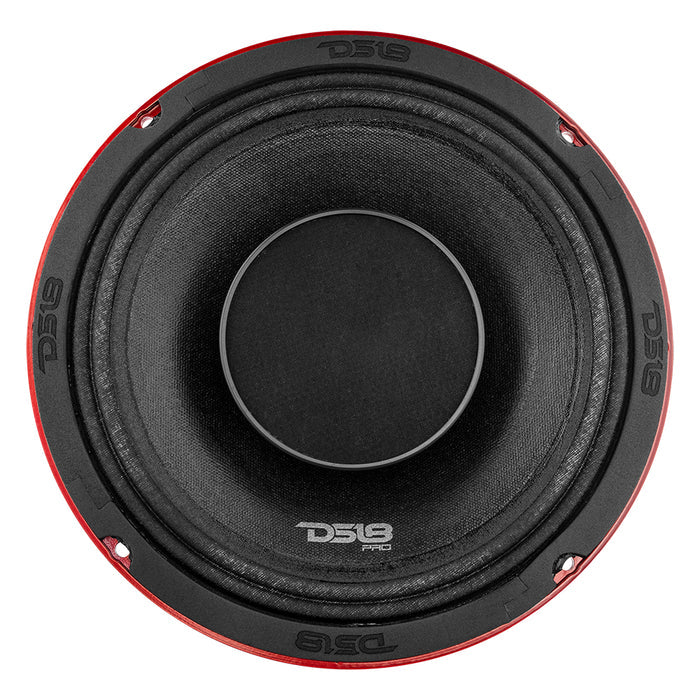

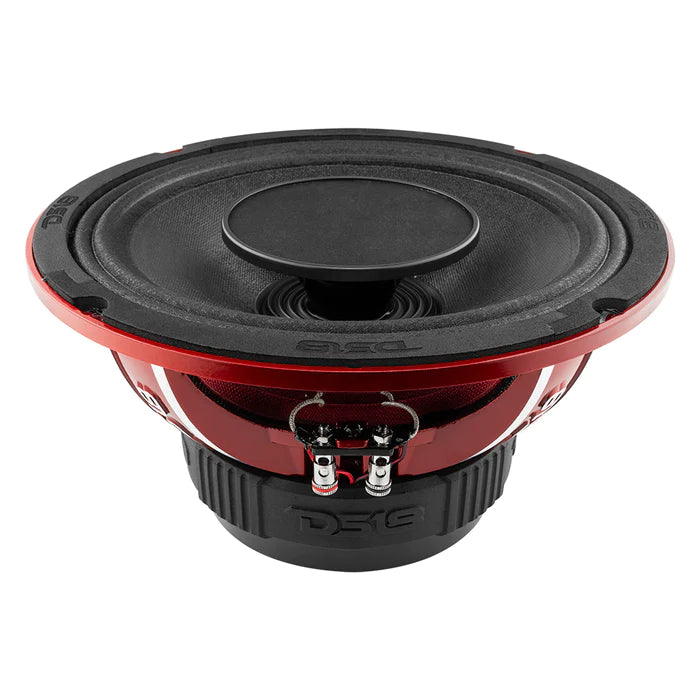

DS18 PRO 10" Hybrid Mid-Range Loudspeaker with Built-in Driver 350 Watts Rms 4-Ohm (Single Unit)

No review yet. Write Review

Regular price: $229.95
Regular price
Sale price: $229.95
Unit price: per

Vendor : DS18

Hurry! Only

units left in stock!

Product variants

Quantity

SATISFACTION

Guaranteed with effortless returns

DELIVERY

We ship to the contiguous 48 United States

PAYMENTS

Your security is our priority

WE ACCEPT

PayPal, Venmo & all major Credit Cards

10" Mid-Range
With Built in Driver
RMS Power: 350 Watts
Impedance: 4-Ohm
Ferrite & Neodymium Magnets
Water Resistant IPX5

TECHNICAL DATA

SPECS

SKU
RPRO-HY10.4BD
Nominal Diameter
10" / 254mm
Nominal Impedance
4 Ohm
RMS Power Handling
350W
MAX Power Handling
700W
Sensitivity (1w/1m)
100dB
Frequency Response
40Hz - 20KHz
Recommended HI Pass Crossover
70Hz
Number of ways
2 ways
Pair or Single
Single
Grill Included
Yes

WOOFER SPECIFICATIONS

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
Water Resistant Paper (IPx5)
Surround Material
Cloth
Basket Material
Aluminum
Basket Color/Finish
Matte Black
Magnet Material
Ferrite
Magnet Weight
49 Oz
Displacement Volume
2.86L / 0.1ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
21.8L / 0.76ft3
Excursion (one way) Xmax
10mm
Free Air Resonance Fs
95Hz
Mechanical Factor Qms
12.59
Electrical Factor Qes
0.995
Total Factor Qts
0.922
Mechanical Mass Mms
26.78g
Mechanical Compliance Cms
0.125 mm/N
BL Factor BL
6.851
Voice Coil Inductance Le
0.313mH
Cone Area Sd
352.99 Cm2
DC Resistance Re
3.4 ohms
Mechanical Mass w/o air Mmd
25g

DRIVER SPECIFICATIONS

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Horn Diameter
4.25" / 108mm

SPEAKER MEASUREMENT

Overall Diameter
10.3" / 261.5mm
Overall Depth
5.7" / 144.4mm
Front Mount Baffle Cutout
9" / 231mm
Mounting Depth
5.31" / 135mm
Motor Diameter
5.7" / 145mm

PRODUCT OVERVIEW

DS18 PRO-HY10.4B

10” Water Resistant Hybrid Loudspeaker With 1.5” Compression Driver Horn

The PRO-HY10.4B is a high-powered, water-resistant hybrid loudspeaker that combines a 10" midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume.
The PRO-HY10.4B features a 1.5" compression driver horn, made with a titanium diaphragm and neodymium magnet, for clear and powerful high-frequency sound.
With a maximum power handling of 700 watts and a sensitivity of 100 dB, this speaker is perfect for those who want to place a high wattage, high volume loudspeaker with a powerful driver into their motorcycles to save on space and increase the quality of their sound.
The water-resistant cone helps protect the speaker from the elements, making it ideal for outdoor use. The PRO-HY10.4B also has a nominal impedance of 4 ohms, a frequency response range of 40Hz-20KHz, and a recommended hi-pass crossover of 70Hz for improved audio performance and longevity, making it a great choice for a range of audio applications.
The PRO-HY10.4B is an excellent choice for anyone seeking a powerful and versatile speaker for their sound system.
