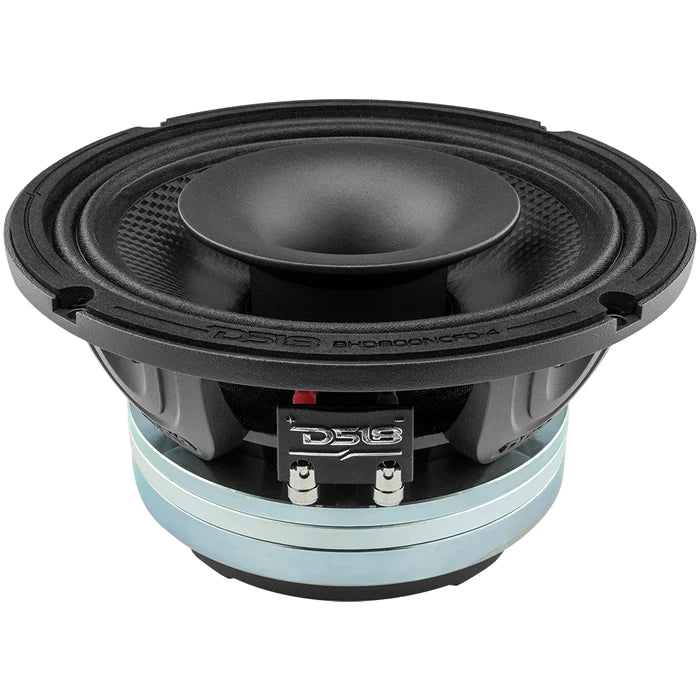

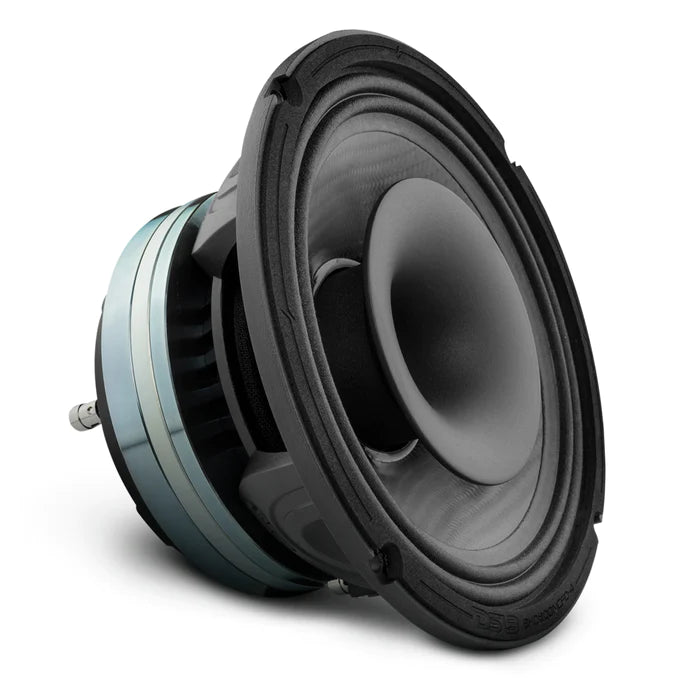

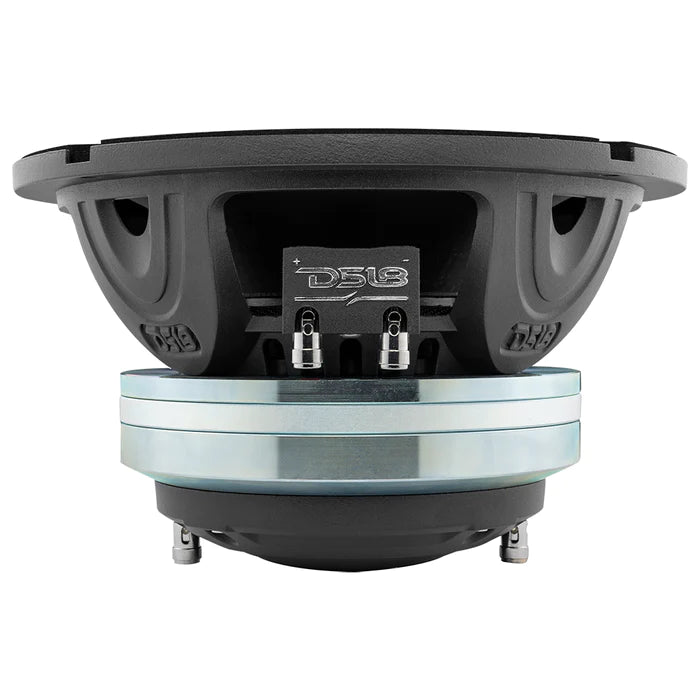

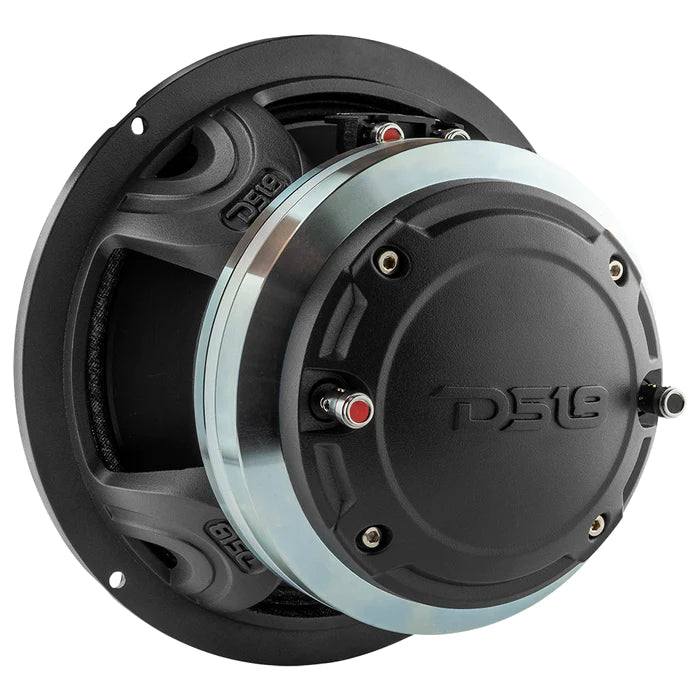

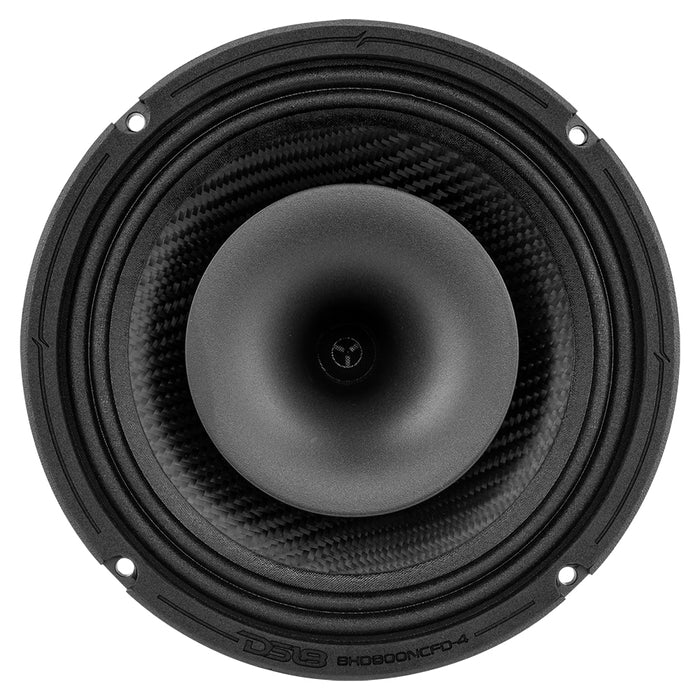

DS18 8" Neodymium Coaxial Hybrid Mid-Bass Water resistant Carbon Fiber Cone Loudspeaker with Built-in Driver 400 Watts Rms 4-Ohm (Single Unit)

No review yet. Write Review
Regular price
$799.95
Regular price
Sale price
$799.95

Vendor : DS18

Hurry! Only
0
units left in stock!
SATISFACTION
Guaranteed with effortless returns
DELIVERY
We ship to the contiguous 48 United States
PAYMENTS
Your security is our priority
WE ACCEPT
PayPal, Venmo & all major Credit Cards
  • 8" Mid-Bass
  • RMS Power: 400 Watts
  • Impedance: 4-Ohm(W)/8-Ohm(D)
  • Neodymium Magnets
  • With Coaxial Hybrid Driver
  • Water Resistant Carbon Fiber Cone

TECHNICAL DATA

SPECS

SKU
R8HD800NCFD-4D
Nominal Diameter
8" / 203mm
Nominal Impedance (Woofer / Driver)
4 / 8 Ohms
RMS Power Handling (Combined)
400W
MAX Power Handling (Combined)
800W
Sensitivity (1w/1m) (Combined)
105dB
Frequency Response (Combined)
40Hz-20KHz
Number of Ways
2
Sold in Pair or Single
Singles
Grill Included
No


WOOFER SPECIFICATIONS

RMS Power Handling
250W
MAX Power Handling
500W
Sensitivity (1w/1m)
96.5dB
Frequency Response
40Hz-10KHz
Recommended Band-Pass Crossover
80Hz-900Hz
Voice Coil Diameter
2.6" / 66mm
Voice Coil Former Material
KAPTON
Winding Material
CCAW
Cone Material
Water Resistant Carbon Fiber
Surround Material
Treated Cloth
Basket Material
Die Cast Aluminum
Basket Color/Finish
Black Sandblasted
Magnet Material
Neodymium
Magnet Size
145x8mm


THIELE & SMALL PARAMETERS

Equivalent Volume - Vas
6.58L / 0.232ft3
Excursion (one way) - Xmax
3.5mm
Free Air Resonance - Fs
105Hz
Mechanical Factor - Qms
26.2
Electrical Factor - Qes
0.38
Total Factor - Qts
0.37
Mechanical Mass - Mms
23.38g
Mechanical Compliance - Cms
0.10mm/N
BL Factor - BL
12.4
Voice Coil Inductance - Le
0.09mH
Cone Area - Sd
219.04cm2
DC Resistance - Re
3.8 ohms
Mechanical Mass w/o air - Mmd
25.4g


DRIVER SPECIFICATIONS

AES Power handling
150W
Program Power Handling
300W
Sensitivity (1w/1m)
100.5dB
Frequency Response
315Hz-20KHz
Recommended Hi Pass Crossover
900Hz
Voice Coil Diameter
3" / 76.2mm
Voice Coil Former Material
KAPTON
Winding Material
CCA
Diaphragm Material
Titanium with Polymer Edge
Magnet Material
Neodymium
Horn Diameter

PRODUCT OVERVIEW


DS18 8HD800NCFD-4


8” Water Resistant Carbon Fiber Mid-Bass With Built-in Coaxial Hybrid Driver 800W

The 8HD800NCFD-4 is the latest addition to DS18’s line of hybrid loudspeakers with built-in compression horn driver. This high-powered hybrid pro audio speaker combines the extreme volume of our 8" mid-ranges with a high-wattage compression driver, delivering a full range of frequencies with absolute precision.
With a nominal diameter of 8" (203mm) and a combined nominal impedance of 4 Ohms for the woofer and 8 Ohms for the driver, these speakers provide optimal performance in any audio setup. The combined RMS power handling of 400W and MAX power handling of 800W deliver mind-blowing volume, while the sensitivity of 105dB (1w/1m) ensures every nuance is heard with stunning clarity. The full range frequency response of 40Hz-20KHz covers a wide range of tones, immersing you in rich, detailed sound.
Installation versatility is at the core of the 8HD800NCFD-4. Equipped with water-resistant carbon fiber cones, these speakers are built to withstand the elements, protecting them from moisture and ensuring they can be installed in almost any build. From motorcycles to boats and regular vehicles, these speakers will elevate your audio experience, no matter the environment.
Wiring options are limitless with the 8HD800NCFD-4, featuring four terminals (two for the midrange and two for the driver). Whether you're seeking an immersive audio setup or a power-packed system, these speakers offer the flexibility to meet your unique requirements.
Combining raw power, unmatched durability, and meticulous craftsmanship, the 8HD800NCFD-4 is sure to redefine your audio experience.
