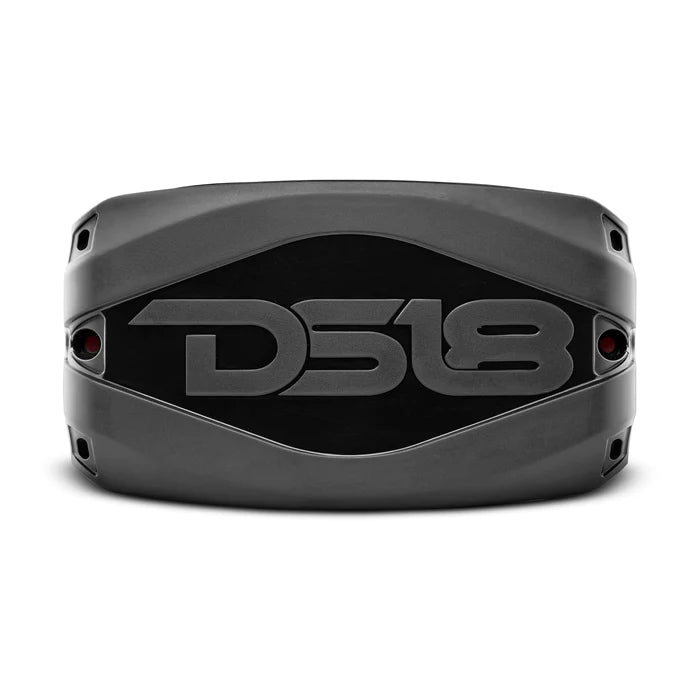

DS18 8-Channel In and 8-Channel Out Digital Sound Processor (DSP) with Bluetooth

No review yet. Write Review
Regular price
$329.95
Regular price
Sale price
$329.95

Vendor : DS18

Hurry! Only
0
units left in stock!
SATISFACTION
Guaranteed with effortless returns
DELIVERY
We ship to the contiguous 48 United States
PAYMENTS
Your security is our priority
WE ACCEPT
PayPal, Venmo & all major Credit Cards
  • Digital Sound Processor
  • 8 Channel In
  • 8 Channel Out
  • Remote Output
  • Bluetooth Connectivity Via App
  • IOS and Android Compatible

TECHNICAL DATA

SPECIFICATIONS



POWER SUPPLY

Working Voltage
9 ? 16 VDC
Remote Input Voltage
9 - 16V
Remote Output Voltage
12.8V (0.5A)
Fuse Size
2 Amp
DSP Speed
147 MIPS
DSP Precision
32-Bit
DSP Accumulators
72-Bit


AUDIO

THD + N
< 1%
Frequency Response
20Hz-20KHz (+/- 0.5dB)
Signal to Noise Ratio @ A Weighted
>100dB
Input Sensitivity
0.2 - 9V
Input Impedance
20k?
Maximum Pre-Out Level (RMS)
8V
Pre-Out Impedance
200?


AUDIO ADJUSTMENT

Crossover Frequency
Variable HPF/LPF 20Hz to 20KHz
Crossover Slope
Selectable 6/12/18/24/36/48 dB/Oct
Equalization
31 Bands Parametric
Equalization
31 Bands Parametric
Q Factor
Selectable 0.05 to 20
EQ Presets
Yes POP/Dance/Rock/Classic/Vocal/Bass
User Presets
Yes Basic / Advanced


DIGITAL TO ANALOG CONVERSION (DAC)

Precision
24-Bit
Dynamic Range
108dB
THD + N
-98dB


ANALOG TO DIGITAL CONVERSION (ADC)

Precision
24-Bit
Dynamic Range
105dB
THD + N
-98dB

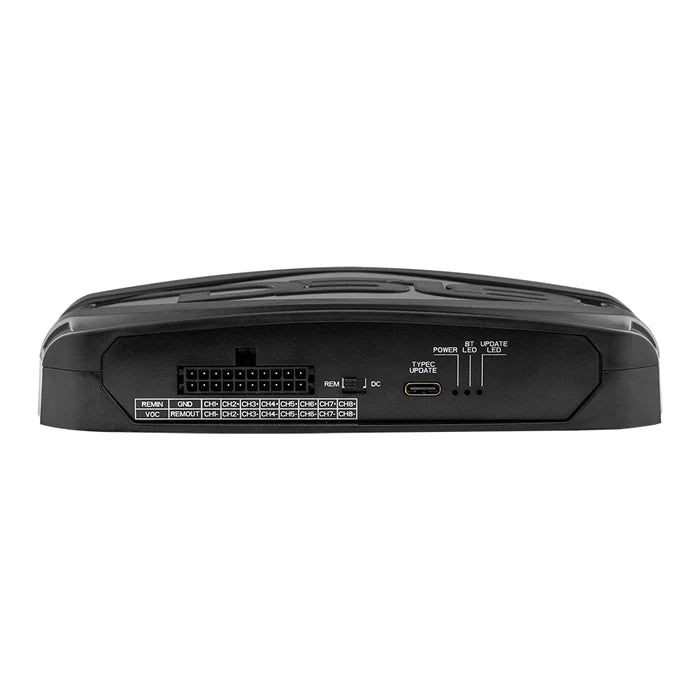

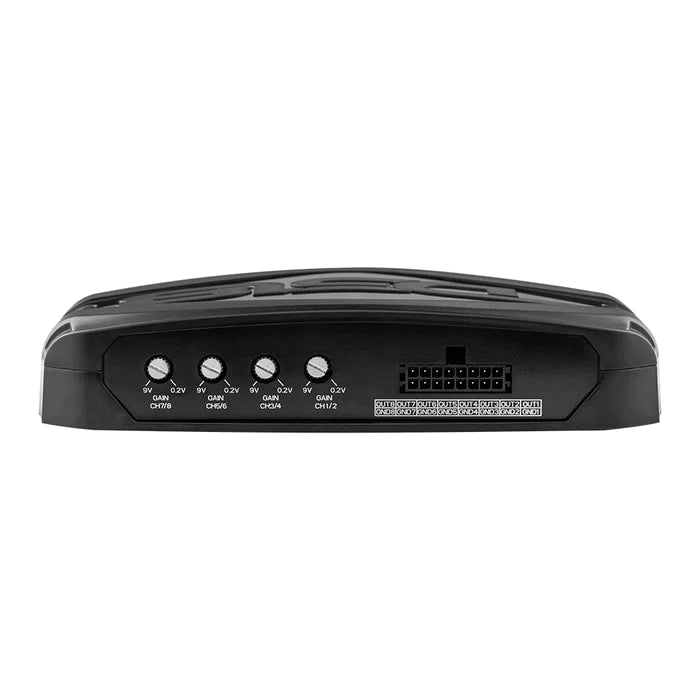

INPUT | OUTPUT

High / Low Level Input
Up to 8 channel
Low Level Output
Up to 8 Channel
Type
RCA (Female)


DIMENSIONS / SHIPPING INFO

Length
6.37?/162 mm
Depth
3.6?/91.5 mm
Height
1.24?/31.7 mm
Dimensions Single Box L x W x H (Inches)
8 x 4.75 x 3.25
Weight (lb)
1
M/C Dimension L x W x H (Inches)
17 x 14 x 15

PRODUCT OVERVIEW


DS18 DSP8.8BT


8-Channel In and 8-Channel Out Digital Sound Processor with Bluetooth

DS18 proudly presents the DSP8.8BT: a 8-channel in and 8-channel out digital sound processor designed to revolutionize your car audio experience.
At DS18, we understand that true audiophiles seek control – absolute dominion over every aspect of their soundstage. The DSP8.8BT is your key to unlocking that control, putting the immense power of your audio system at your fingertips.
Creating the perfect audio system has never been easier, thanks to the DSP8.8BT's intuitive features. Our BT Interface grants you direct access to an extensive list of filtration settings, ensuring that your sound is tailored precisely to your preferences. Our dedicated DSP8.8BT Application, available on both the App Store and Google Play, dares you to fine-tune and monitor every aspect of your signal processing. Effortlessly save presets for specific songs or genres, creating the ideal listening experience every time.
The DS18 DSP8.8BT takes audio tuning to an entirely new level with its 31 Band Graphic Equalizer. This advanced feature grants you the power to finely adjust the audio response across a wide range of frequencies. With this level of control, you can precisely target and eliminate peaks and dips in specific frequency ranges, ensuring that every note is reproduced with utmost accuracy. Fine-tune the tonal balance of your music, bringing out the best in each instrument and vocal, and achieving a sound signature that suits your personal preferences.
The DS18 DSP8.8BT goes a step further by offering adjustable crossovers on each channel, allowing you to fine-tune the separation between different audio components. With the ability to customize crossover points from 6 to 48dB/octave, you have unprecedented control over how frequencies are divided and sent to your speakers, amplifiers, and subwoofers.
